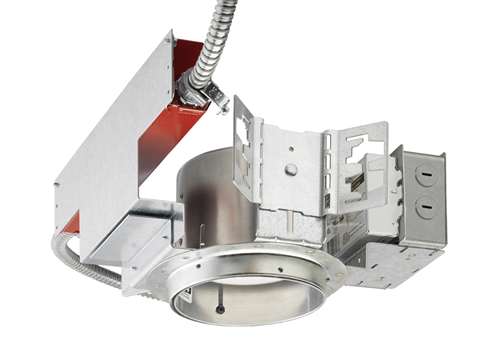

Juno TC22LED G4 14LM 27K 90CRI MVOLT ECOS3 BR Recessed Lighting 6" LED Standard Type New Construction Housing 1400 Lumens, 2700K Color Temperature, 120V Lutron Hiume 3-Wire Dimmable Light with Emergency Battery Backup

• Dedicated LED new construction housing with integral light engine
• Shallow housing allows for fit in 2 x 6 construction
• TC housing design for use in noninsulated areas
• If installed where insulation is present, the insulation must be pulled back 3? from all sides of the TC housing
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

• LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-Step MacAdam Ellipse exceeding ENERGY STAR? requirements yielding superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K or 4100K color temperatures available
• 90 CRI minimum.

• Compatible with wide selection of existing Juno trims
• See PDF spec for trim selection.

• Refer to ordering information between the 2 available LED Driver options:
  • Universal voltage driver that accommodates input voltage from 120-277 volts AC at 50/60Hz is standard and is dimmable with the use of most 0-10V dimmers, or
  • Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
• Power factor > 0.9 at 120V input
• Mounted between the j-box and housing for easy access and cool operation
• For a list of compatible dimmers, click here.

• Rated for 50,000 hours at 70% lumen maintenance.

• ENERGY STAR Qualified when used with select baffle and cone trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL listed.

• All reports are based on published industry procedures; field performance may differ from laboratory performance.

Download Wall Wash Trims PDF Specification
