Juno Aculux TC43LR-827-F-1 Recessed Lighting 3-1/4 inch LED Remodel Standard Housing 700 lumens, 2700K Color Temp, 85 CRI, Flood Beam, 120V Dimmable Light
Juno Aculux TC43LR-827-F-1 Recessed Lighting 3-1/4 inch LED Remodel Standard Housing 700 lumens, 2700K Color Temp, 85 CRI, Flood Beam, 120V Dimmable Light
Ordering a large quantity?
Request a quote
View full details
description

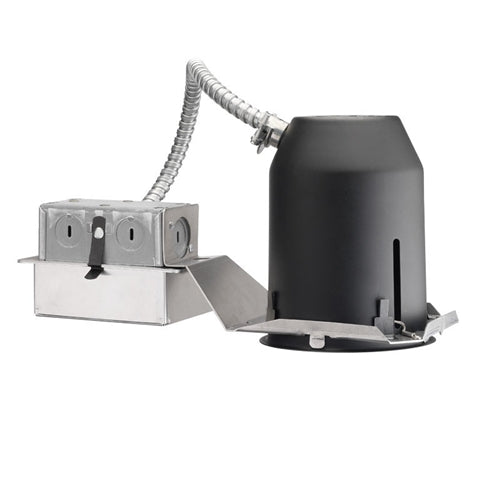

Recessed adjustable 13W LED remodel luminaire produces up to 700 fixture lumens (depending on trim) and approximates the performance of a 50W MR16 lamp. Fixture has 50° visual cutoff.Low profile non-IC rated housing for use in non-insulated areas or where insulation is spaced at least 3” from housing. Installs quickly and securely with patented (US Patent 7,191,993) push-pull cable system throught ceiling opening.
Replaceable LED array with connector mounts directly to high purity aluminum heat sink to provide superior thermal management Consistent fixture to fixture color consistency within 3-step MacAdam ellipse 2700K, 3000K, 3500K, or 4000K color temperatures are available with 85 CRI typical 3000K also available with 93 CRI typical and R9 >80.
Available in three (3) factory-configured beam spreads, the optics are field interchangeable if other beam spreads are required after fixture installation 12° Spot, 24° Narrow Flood, and 35° Flood optics available Patented (US Patent 8,950,911) auto-adjusting optic holder maximizes luminaire efficiency by maintaining optimal LED optic position and accommodates up to two (2) additional beam control lenses and/or filters.
370° rotation, 35° tilt hot aiming with locking Optimized optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness Black aiming mechanism preserves dark aperture.
Trim Ring and Self Flanged reflectors utilize torsion spring retention for tight, secure fit to ceiling Trim ring features beveled knife edge for clean ceiling interface Self Flanged reflectors with polished or optional white painted flange.
Choice of three drivers to accommodate voltages from 120-277 volts AC Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage and electronic low voltage dimmers Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers Lutron A Series (-L) driver is 3-wire dimmable and compatible with EcoSystem® For a list of compatible dimmers, refer to ACLXLED-DIM Power Factor > 0.9 Field replaceable from below or above ceiling.
Rated for 50,000 hrs at 70% lumen maintenance.
5 years from date of purchase on LED components Standard Juno Lighting Group product guarantee terms and conditions apply.
UL and cUL listed, damp locations and wet locations with suitable trims Union made.

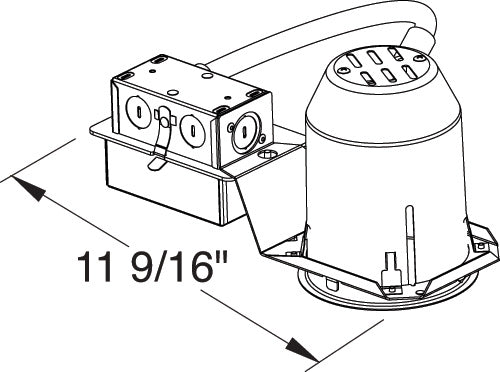

Allows rapid installation without tools or loose parts Housing accommodates ceiling thickness from 3/8” to 2” without altering photometrics Fits 2 x 6 construction.
Includes (5) ½” and (4) Non-metallic sheathed cable knock-outs Push-in electrical connectors for field connections.
Galavinized steel plaster frame Housing anodized black for visually dark interior Packaged for ease of rapid installation.
Download Housing Only SpecificationShare your knowledge of this product. Be the first to write a review »
