Product Family Description

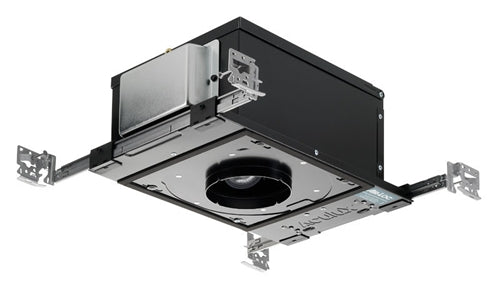

Recessed adjustable 20W LED luminaire produces up to 1000 fixture lumens (depending on trim) and approximates the performance of a 75W MR16 lamp. Fixture has 50° visual cutoff and features precision geared hot-aiming. Sealed Air-Loc® housing ensures maximum energy savings and controls plenum sound transmission. Low profile Non-IC rated housing for use in non-insulated areas or where insulation is spaced at least 3” from housing.
Product Family Features
LED Light Engine- Consistent fixture to fixture color consistency within 3-step MacAdam ellipse
- 2700K, 3000K, 3500K, or 4000K color temperatures are available with 85 CRI typical
- 3000K also available with 93 CRI typical and R9 >80.
Modular Optics
- Available with 12° Spot, 24° Narrow Flood, or 35° Flood field interchangeable optics
- Patent pending auto-adjusting optic holder maximizes luminaire efficiency by maintaining optimal LED optic position
- Accommodates up to three (3) additional beam control lenses and/or filters.
Adjustability
- Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 45° tilt
- Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
- Black aiming mechanism preserves dark aperture.
Trims Style
- Trim Ring, Self Flanged and Flush Mount reflectors utilize torsion spring retention for tight, secure fit to ceiling
- Trim ring features beveled knife edge for clean ceiling interface
- Self Flanged reflectors with polished or optional white painted flange
- For flush mount installations in drywall ceilings use the FMA4 flush mount adapter
- For flush mount installations in wood, stone, or tile ceilings the FMA4-SC*** must be used (specify ceiling thickness and adapter finish).
LED Driver
- Choice of four drivers to accommodate voltages from 120-277 volts AC
- Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
- Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
- Lutron Hi-Lume® A Series 3-wire (-L)driver is dimmable with 3-wire fluorescent controls and compatible with EcoSystem®
- Lutron Hi-Lume® A Series 2-wire (-D) driver is dimmable with 2-wire forward phase dimmers containing a neutral wire
- For a list of compatible dimmers, refer to ACLXLED-DIM
- Power Factor > 0.9
- Field replaceable from below or above ceiling.
Life
- Rated for 50,000 hrs at 70% lumen maintenance.
Warranty
- 5 years from date of purchase on LED components
- Standard Juno Lighting Group product guarantee terms and conditions apply.
Codes/Labels
Mounting- UL and cUL listed for through branch wiring, damp locations and wet locations with suitable trims
- Meets energy code Air Leakage requirements per ASTM E283
- ENERGY STAR® Qualified and certified to high efficacy requirements of California T24 with select trims
- Union made.

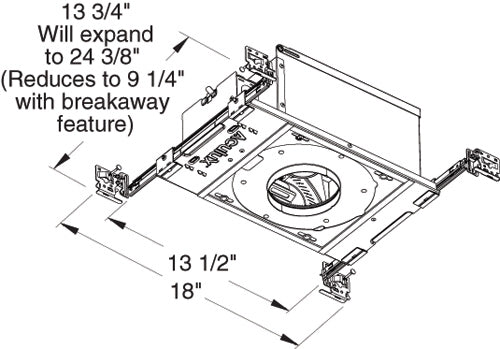

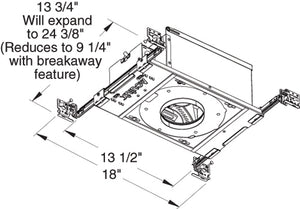

- TC49L features Patented (US Patent 8.038,113) Pro-VI™ Bar Hanger System with locking set screws, permitting quick placement of housing within 24” O.C. joists or suspended ceilings
- Robust bar eliminates flexing regardless of fixture position
- Integral T-bar notch with locking tabs secures housing to suspended ceiling grid
- Captive bugle-headed ring shank nail for quick one-step installation
- Bar Hanger foot aligns to bottom of construction joist and breaks away for use in suspended ceilings.
- TC949L is equipped with vertically adjustable mounting brackets that accept ½” conduit, “C” channels (HB-26 or HB-50), linear flat bars (LB-27) or 26” telescoping Real Nail bar hangers (HB-1).
Junction Box
- Rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (6) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
- Push-in electrical connectors for field connections.
Housing/Mounting Frame
- Black steel plaster frame and housing painted for visually dark interior
- V-Notch in plaster frame and Patented (US Patent 8,277,090) Tru-Line™ Platform featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.
Ceiling Thickness
- 1/2” – 7/8” ceiling standard
- For thicker ceilings, order CTA4N-125 (7/8”-1 1/4”), CTA4N-163 (1 1/4”-1 5/8”) or CTA4N-200 (1 5/8”– 2”)
- CTA4N not required for wood, stone, or tile flush mount applications.
