Juno Recessed Lighting TC922LEDG4-35K-UBR 6" TC-Rated New Construction LED Downlights, 900 Lumens, 3500K Color Temperature, with Universal Voltage 120-277V (0-10V Dimming), and Emergency Battery Back-up with Remote Switch
Juno Recessed Lighting TC922LEDG4-35K-UBR 6" TC-Rated New Construction LED Downlights, 900 Lumens, 3500K Color Temperature, with Universal Voltage 120-277V (0-10V Dimming), and Emergency Battery Back-up with Remote Switch
Regular price
Price:
$428.01
Regular price
Price:
Sale price
$428.01
Unit price
per
MODEL: Juno-TC922LEDG4-35K-UBR
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
LED Light Engine
ORDERING INFORMATION

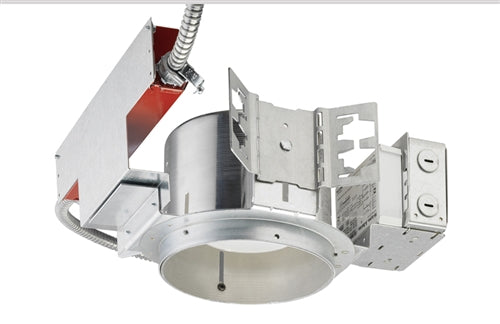

- Dedicated LED new construction housing with integral light engine

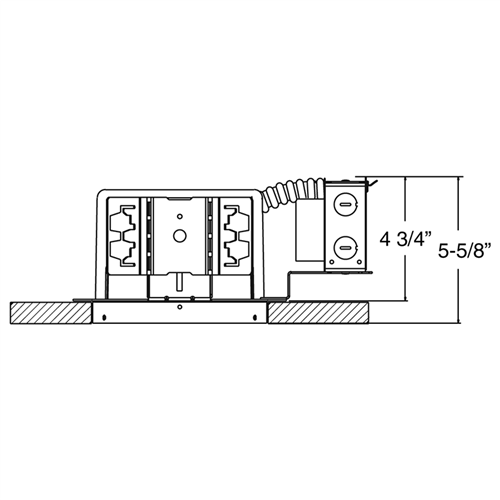

- Shallow housing allows for fit in 2 x 6 construction
- TC housing design for use in noninsulated areas
- If installed where insulation is present, the insulation must be pulled back 3” from all sides of the TC housing
- LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
- 5 year limited warranty on LED components.
LED Light Engine
- LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
- Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
- LEDs are binned within a 3-Step MacAdam Ellipse exceeding ENERGY STAR® requirements yielding superior fixture to fixture color uniformity
- 2700K, 3000K, 3500K or 4100K color temperatures available
- 90 CRI minimum.
- Compatible with wide selection of existing Juno trims
- See PDF spec for trim selection.
- Refer to ordering information between the 2 available LED Driver options:
- Universal voltage driver that accommodates input voltage from 120-277 volts AC at 50/60Hz is standard and is dimmable with the use of most 0-10V dimmers, or
- Optional Lutron Hi-Lume A-Series driver accommodates 120-277 volts AC at 50/60Hz
- Power factor > 0.9 at 120V input
- Mounted between the j-box and housing for easy access and cool operation
- For a list of compatible dimmers, click here.
- Battery factory assembled to housing with remote mounted test switch included
- Drives LED array for 90 minutes to meet Life Safety Code (NFPA-LSC), National Electrical Code (NEC) and UL requirements
- Provides 50% light output in emergency mode.
- Rated for 50,000 hours at 70% lumen maintenance.
- ENERGY STAR Qualified when used with select baffle and cone trims
- UL listed for U.S. and Canada through-branch wiring, damp locations
- Union made
- UL and cUL listed.
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
ORDERING INFORMATION
Download Universal Driver Instruction ManualShare your knowledge of this product. Be the first to write a review »
