Juno Aculux TC943M-MR16-20E1-CP Recessed Lighting 3-1/4 inch Open Aperture Standard Housing 20W Metal Halide MR16, 120V, Chicago Plenum

Name: Juno Aculux TC943M-MR16-20E1-CP Recessed Lighting 3-1/4 inch Open Aperture Standard Housing 20W Metal Halide MR16, 120V, Chicago Plenum
Brand: Juno Lighting
SKU: Juno-TC943M-MR16-20E1-CP
Availability: InStock

Ordering a large quantity? Request a quote

Email or call us at 310-822-6500 for pricing

For project, request a quote

View full details

description

PRODUCT DESCRIPTION

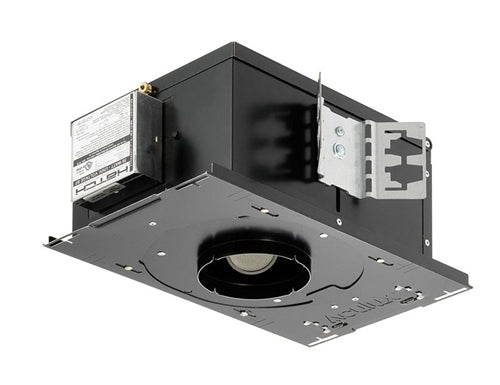

Recessed adjustable metal halide MR16 luminaire with 3¼” aperture and precision geared hot-aiming. Low profile non-IC housing is for use in non-insulated areas, or where insulation is spaced at least 3” from housing. Supplied with vertically adjustable hlide mounting brackets that accept ½” conduit, “C” channel bar hangers, linear bar hangers or telescoping Real Nail bar hangers.

PRODUCT SPECIFICATIONS

Trims Style

Trim Ring, Self Flanged and Flush Mount Trims utilize torsion spring retention for tight, secure fit to ceiling
Trim ring features beveled knife edge for clean ceiling interface
Self Flanged reflectors with polished or optional white painted flange
Flush Mount trims must be used with FMA4 Flush Mount Adapter.

Lens

Lampholder accommodates up to two (2) 2” captive accessory lenses.

Socket

GX10 twist lock socket with quick disconnect for simplified maintenance.

Lamp

One 20W or 39W CMH MR16 lamp max. (See trim for max. lamp rating)

Adjustability

Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 45° tilt
Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness
Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture
Shield hinges out of way to facilitate maintenance.

Ballast

High Power Factor, electronic solid state ballast with less than 10% THD
Features transient and short circuit protection
Available in 120V or 277V.

Codes/Labels

UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims)
Product thermally protected
Union made.

Mounting Bracket

Rough-in section equipped with vertically adjustable mounting brackets that accept ½” conduit, “C” channels (HB-26 or HB-50), linear flat bars (LB-27) or 26” telescoping Real Nail bar hangers (HB-1).

Junction Box

Rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (5) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
Push-in electrical connectors for field connections.

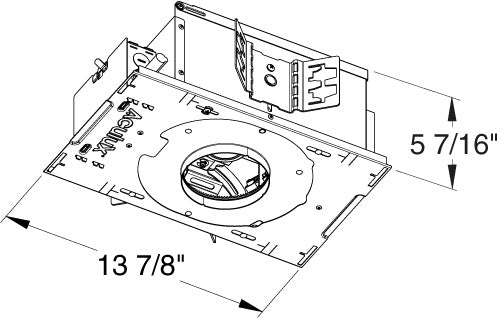

Housing/Mounting Frame

Black steel plaster frame and housing painted for visually dark interior
V-Notch in plaster frame aids fixture alignment during installation
Patent pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.
