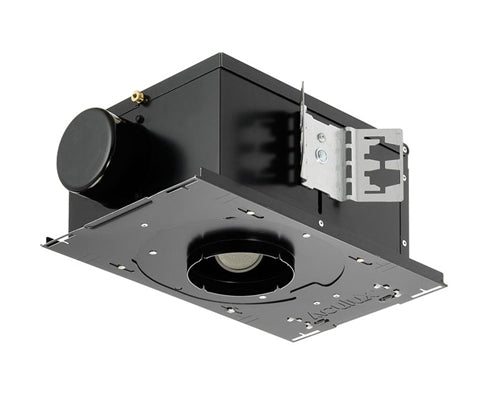

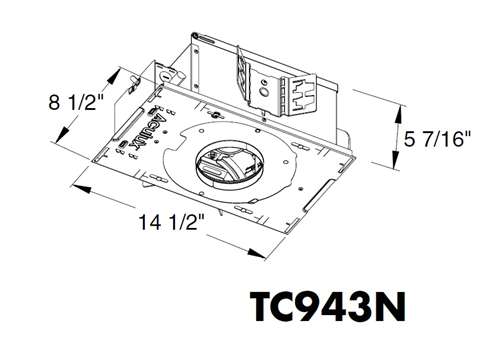

Juno Aculux TC943N MLV 120 Recessed Lighting 3 inch Low Voltage New Construction Housing with 120V Magnetic Transformer

PRODUCT DESCRIPTION

• Recessed adjustable MR16 luminaire with 3 1/4" aperture and precision geared hot-aiming. Fixture has 50 degree visual cutoff to lamp and lamp image. Low profile non-IC housing is for use in non-insulated areas, or where insulation is spaced at least 3" from housing. Supplied with vertically adjustable mounting brackets that accept 1/2" conduit, "C" channel bar hangers, linear bar hangers or telescoping Real Nail bar hangers.

• Trim Ring, Self Flanged and Flush Mount Trims utilize torsion spring retention for tight, secure fit to ceiling
• Trim ring features beveled knife edge for clean ceiling interface
• Self Flanged reflectors with polished or optional white painted flange
• Flush Mount trims must be used with FMA4 Flush Mount Adapter.

• Lampholder accommodates up to three (3) 2" captive accessory lenses
• Supplied with stippled clear uniformity lens.

• Ceramic bi-pin socket with double blade nickel alloy contacts
• Quick disconnect for simplified maintenance.

• One 75W MR16 lamp max. (See trim for max. lamp rating)

• Acu-Aim precision geared hot-aiming achieves 370 degree rotation, 45 degree tilt
• Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness
• Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture
• Shield hinges out of way to facilitate maintenance.

• High efficiency (>90%) dual tap magnetic, toroidal transformer has a boost tap to compensate for dimmer losses, improving color temperature and lumen output
• Potted to eliminate noise and vibration
• High efficiency (>94%), high power factor electronic transformer also available
• 120V or 277V available.

• May be dimmed using dimmers specifically designed for low voltage magnetic or electronic transformers; consult factory or dimmer manufacturer for additional information.

• UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims)
• Product thermally protected
• Union made.

• Rough-in section equipped with vertically adjustable mounting brackets that accept 1/2" conduit, "C" channels (HB-26 or HB-50), linear flat bars (LB-27) or 26" telescoping Real Nail bar hangers (HB-1).

• Rated for 8 No. 12 AWG 90 degree C through branch circuit conductors and includes (5) 1/2", (1) 3/4", and (4) Non-metallic sheathed cable knock-outs
• Push-in electrical connectors for field connections.

• Frame Black steel plaster frame and housing painted for visually dark interior
• V-Notch in plaster frame aids fixture alignment during installation
• Patent pending Tru-Line Adjustment Mechanism featuring +/- 1/2" translation aids fixture alignment after installation, prior to drywall.
