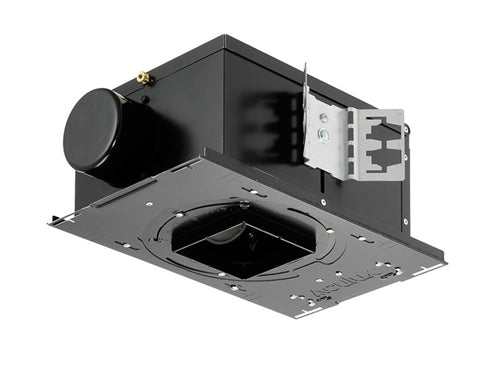

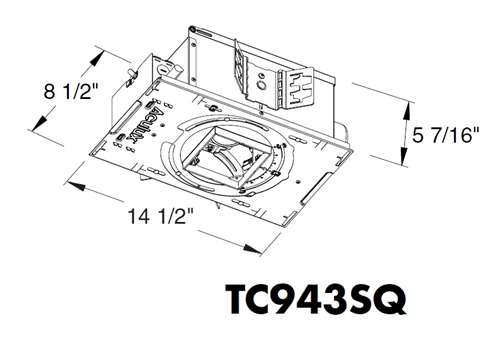

Juno Aculux TC943SQ MLV 120 Recessed Lighting 3 inch Low Voltage New Construction Standard Square Adjustable Housing with 120V Magnetic Transformer
Juno Aculux TC943SQ MLV 120 Recessed Lighting 3 inch Low Voltage New Construction Standard Square Adjustable Housing with 120V Magnetic Transformer
Regular price
Price:
$265.24
Regular price
Price:
Sale price
$265.24
Unit price
per
MODEL: Juno-TC943SQ-7138
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
description
Recessed adjustable MR16 luminaire with 3 1/4" square aperture and precision geared hot-aiming. Fixture has 50 degree visual cutoff to lamp and lamp image. Low profile non-IC housing is for use in noninsulated areas, or where insulation is spaced at least 3" from housing. Supplied with vertically adjustable mounting brackets that accept 1/2" conduit, "C" channel bar hangers, linear bar hangers or telescoping Real Nail bar hangers.
Die Cast Self Flanged and Flush Mount reflectors utilize precision wound double torsion springs for tight, secure fit to ceiling Flange is same finish as reflector unless optional painted white flange is specified Flush Mount trims must be used with FMASQ4 Flush Mount Adapter.
Lampholder accommodates up to three (3) 2" captive accessory lenses Supplied with stippled clear uniformity lens.
Ceramic bi-pin socket with double blade nickel alloy contacts Quick disconnect for simplified maintenance. Lamp One 75W MR16 lamp max. See trim for max. lamp rating
Acu-Aim precision geared hot-aiming achieves 370 degree rotation, 45 degree tilt Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture Shield hinges out of way to facilitate maintenance.
High efficiency (>90%) dual tap magnetic, toroidal transformer has a boost tap to compensate for dimmer losses, improving color temperature and lumen output Potted to eliminate noise and vibration High efficiency (>94%), high power factor electronic transformer also available 120V or 277V available.
May be dimmed using dimmers specifically designed for low voltage magnetic or electronic transformers; consult factory or dimmer manufacturer for additional information.
UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims) Product thermally protected Union made.
Rough-in section equipped with vertically adjustable mounting brackets that accept 1/2" conduit, "C" channels (HB-26 or HB-50), linear flat bars (LB-27) or 26" telescoping Real Nail bar hangers (HB-1).
Rated for 8 No. 12 AWG 90 degree C through branch circuit conductors and includes (5) 1/2", (1) 3/4", and (4) Non-metallic sheathed cable knock-outs Push-In electrical connectors for field connections.
Black steel plaster frame and housing painted for visually dark interior V-Notch in plaster frame aids fixture alignment during installation Patent Pending Tru-Line Adjustment Mechanism featuring +/- 1/2" translation and +/- 45 degree aperture rotation aids fixture alignment after installation, prior to drywall.
1/2" – 7/8" ceiling standard For thicker ceilings, order CTA4SQ-125 (7/8"-1 1/4"), CTA4SQ-163 (1 1/4"-1 5/8") or CTA4SQ-200 (1 5/8" – 2").
