Juno Aculux Recessed Lighting TC963 5-5/8 inch Line Voltage New Construction Standard Open Aperture Adjustable Housing
Juno Aculux Recessed Lighting TC963 5-5/8 inch Line Voltage New Construction Standard Open Aperture Adjustable Housing
Regular price
Price:
$152.55
Regular price
Price:
Sale price
$152.55
Unit price
per
MODEL: Juno-TC963
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
description
Recessed adjustable PAR30 luminaire with 5-5/8” angle-cut Alzak® cone aperture. Fixture has 50° visual cutoff to lamp and lamp image. Aiming and rotation locks. TC housing designed foruse in non-insulated areas, or where insulation is spaced at least 3” from housing.
One 75W PAR30 lamp.
Medium base porcelain socket with nickel plated copper screw shell.
White, Satin Chrome, or Classic Aged Bronze on steel Torsion spring retention for tight, secure fit to ceiling Beveled profile for clean ceiling interface without light leaks.
.050” aluminum angle cut reflector with clear, gold, black or haze finish 50° lamp and lamp image cut-off.
Optimized lamp beam optical alignment with trim opening to insure full light output with low aperture brightness at any aiming angle 361° rotation, 35° tilt Tooless locking for both rotation and tilt Off- vertical aiming marks to aid consistent aiming for multiple units Unit may be relamped without unlocking adjustments Matte black adjustment yoke to preserve dark aperture.
U.L. listed for through-branch wiring, damp locations and IP Product thermally protected against improper use of lamps or insulation Union made CSA certified.
All reports are based on published industry procedures; field performance may differ from laboratory performance. Product specifications subject to change without notice.

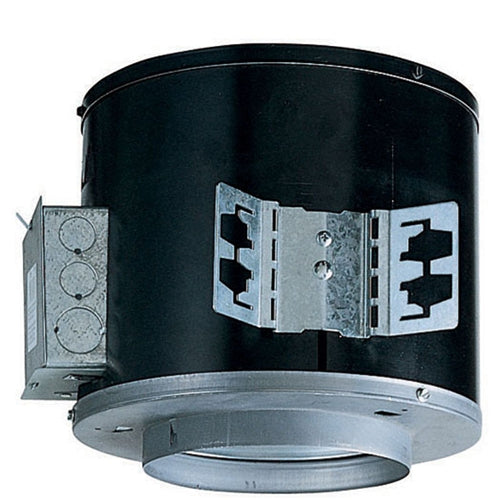

Rough-in section equipped with vertically adjustable mounting brackets that accept 1⁄2” conduit, “C” channels (HB-26 or HB-50), linear flat bars (LB-27) or 26” telescoping Real Nail bar hangers (HB-1).
Pre-wired junction box, U.L. listed/CSA certified for through-branch wiring, maximum 8 No. 12 AWG 90° C branch circuit conductors (4 in, 4 out) Junction box provided with removable access plates (5) 1⁄2” and (1) 3⁄4” knockouts and ground wire.
20-gauge die-formed galvanized steel mounting ring 22-gauge steel housing painted black inside and out -
Rough-in section (junction box, mounting frame, housing assembly and mounting brackets) fully assembled for ease of installation.
Download 635 Adjustable Baffled Aperture Trims SpecificationShare your knowledge of this product. Be the first to write a review »
