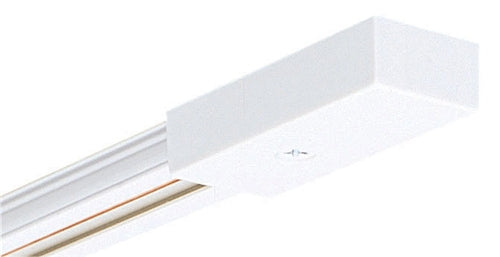

Juno Track Lighting TL4WH (TLV 4FT WH) 4 ft Track - Trac 12 Low Voltage 20 Amp Track System, White Color
Juno Track Lighting TL4WH (TLV 4FT WH) 4 ft Track - Trac 12 Low Voltage 20 Amp Track System, White Color
Regular price
Price:
$25.02
Regular price
Price:
Sale price
$25.02
Unit price
per
MODEL: Juno-TL4WH
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
The Trac12 series is the original miniature low voltage system that combines a 20-amp capacity with an extremely miniature engineered plastic profile. The system operates using remotely located or in-line 12-volt or 24-volt transformers. A maximum of 240 watts (12 volts) or 480 watts (24 volts) can be placed per circuit of trac.
Trac 12™ Trac Sections Includes end-feed connector, dead end and mounting hardware. End-feed connector converts to a straight connector when joining multiple trac sections.
NOTE: When joining trac sections, overall length is 1 7/16" shorter than individual trac section lengths.
Construction
- Extruded ABS/Polycarbonate for maximum strength and heat resistance
- Injection molded polycarbonate terminal block end-feed/straight connector assembly with decorative cover
- Injection molded polycarbonate dead-end with set screw
- Standard lengths may be cut-to-length by installer.
Electrical
- Two 12 gauge solid copper conductors
- Rated 20 amps at 12 or 24 volts.
Length Measurement
- 2' trac (actual length 20 5/8")
- 4' trac (actual length 44 5/8")
- 6' trac (actual length 68 5/8")
- 8' trac (actual length 92 5/8")
Labels UL listed, CSA certified.
