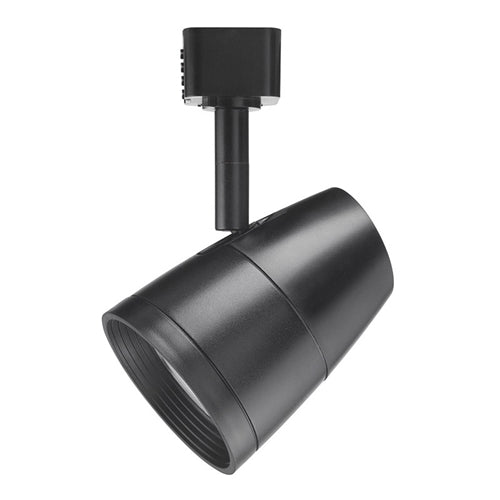

Juno Track Lighting R600LG24KNBL 10W LED Trac Lites Fixture, 4000K Color Temperature, 80 CRI, Narrow Flood Beam, Black Finish
Juno Track Lighting R600LG24KNBL 10W LED Trac Lites Fixture, 4000K Color Temperature, 80 CRI, Narrow Flood Beam, Black Finish
Regular price
Price:
$49.64
Regular price
Price:
Sale price
$49.64
Unit price
per
MODEL: Juno-R600LG24KNBL
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION
PRODUCT SPECIFICATIONS
Compatible Track Lighting System
Construction
The R600LG2 Series 10W LED is an economical and affordable trac fixture, with a simple and timeless
aesthetic. It approximates the light output and distribution of 50W MR16 halogen lamps, utilizing about 20% of the energy and having a rated life of 50,000 hours. Versions are currently available in 2700K & 3500K color temperature with minimum 80 CRI. Optional 97 CRI versions are also available in 2700K, 3000K, and 4000K color temperatures The R600LG2 Series LED is available in spot, narrow flood and flood beam distributions which can be achieved with interchangeable precision-molded custom optics. It is compatible with Juno Trac-Lites and Trac-Master trac and system components.
PRODUCT SPECIFICATIONS
Compatible Track Lighting System
-
Trac-Master 120V One Circuit System
- Trac-Master 120V Two Circuit System
-
Trac-Master 120V Tube System
-
Trac-Master 120V Recessed System
-
Trac-Lites One Circuit System
- Die cast aluminum heat sink provides outstanding thermal management of LED, yielding 70% average lumen maintenance at 50,000 hours of operation
- Simple, timeless design complements any decor
- Available in white, black, bronze and silver finishes.
- High performance LED array provides outstanding reliability, performance and color quality/consistency
- 2700K, 3000K, 3500K or 4000K white phosphor high performance LEDs
- Exceptional 80 CRI minimum available in 2700K & 3500K CCTs
- Optional 97 CRI minimum available in 2700K, 3500K, or 4000K CCTs
- Chromaticity range within a 3-step MacAdam Ellipse.
- Integrated into fixture housing behind LED light engine to minimize overall fixture footprint
- Insulating air gap between driver and LED light engine, plus thermal potting compound, optimizes thermal operation
- Provides quiet operation with or without dimming
- Dimmable using high quality, factory-approved dimmers - see R600LG2-DIM
- Solid state electronic, Class 2 compliant
- Integral overcurrent and short circuit protection
- Designed for greater than 50,000 hour operating life
- FCC Certified to Part 15 Class B EMI standards.
- Proprietary, interchangeable thermoplastic lenses available in three factory-configured beam spreads
- Indicate specific beam spread desired or specify universal version which includes both narrow flood and flood optics
- Accessory optics also available to enable simple beam changes in the field.
- Bayonet mount lensholder facilitates lens changes in the field.
- Copper alloy contacts provide precise spring action - no arcing and will not take a set
- True, positive electrical ground
- On/off switch included
- Patented embossed polarity arrows on bottom of adapter
- Spring-loaded positive latch with embossed polarity arrows secures trac fixture to trac
- "Pull-up" contact to up position for two-circuit application.
- 350? horizontal coverage
- 90? vertical aiming capability.
- UL and C-UL Listed
- ENERGY STAR Qualified
- DesignLights Consortium Qualified
- Union Made
- Assembled in U.S.A
