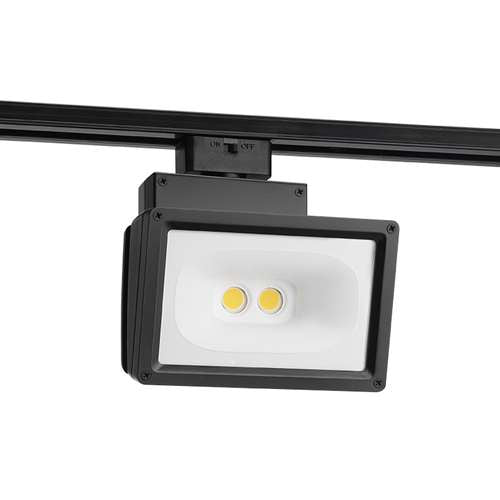

Juno Track Lighting T259L 35K 80CRI PDIM BL Wall Wash Flood 57W LED 4691 Lumens, 3500K Color Temperature, 80 CRI, Black Finish

Juno Track Lighting T259L 35K 80CRI PDIM BL Wall Wash Flood 57W LED 4691 Lumens, 3500K Color Temperature, 80 CRI, Black Finish

Price: $417.87
Price: $417.87

MODEL: Juno-T259L-10678

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

Product Family Description
The T258L & T259L LED wall wash/flood trac fixtures deliver a powerful and uniform punch of light, utilizing less energy than a similar CMH fixture and offering up to 4 times the rated life. They are capable of delivering up to 4691 powerful lumens, yielding an efficacy of up to 88 lumens per watt. Employing a custom hyperbolic reflector, they provide a smooth, wide beam of light. Their unique, narrow profile enables them to fit nicely with accent spotlights on the trac. Their optimized thermal management design yields a maintenance-free 50,000 hours service life at 70% lumen maintenance. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light T258L & T259L LED wall wash/flood trac fixtures are compatible with Juno Trac-Master and Trac-Lites trac.

Product Family Specification
Housing
  • Robust die cast aluminum construction
  • Concealed wiring for a simplified, clean aesthetic
  • Computer designed heat sink provides outstanding thermal management, yielding 70% average lumen maintenance at 50,000 hours of operation
  • Available in white, black and silver painted finishes.
LED
  • Two high performance LEDs per fixture provide outstanding reliability, performance and color quality/consistency
  • White phosphor high brightness LEDs in 2700K, 3000K, 3500K or 4000K color temperatures
  • Exceptional 80 CRI minimum on standard product
  • Optional high CRI versions offer 90 CRI minimum.
Drivers
  • Cleverly assembled in a separate housing behind the LED housing to minimize overall fixture footprint
  • Insulating air gap between drivers and LED light engine optimizes thermal operation
  • Solid state electronic, Class 2 compliant
  • Integral overcurrent and short circuit protection
  • FCC Part 15 Class B rated.
Dimming
  • Standard version is dimmable using high quality reverse phase electronic low voltage (ELV) dimmers approved by Juno - see T258L-T259L-DIM.
Reflector
  • Custom hyperbolic reflector creates a smooth, wide beam pattern and enables LEDs to be deeply regressed to minimize glare.
Aiming
  • 360 degree horizontal coverage
  • 90 degree vertical aiming capability
  • Concealed vertical aiming lock screw to secure fixture aiming.
Adapter
  • Oversized trac adapter for greater mounting stability
  • Copper alloy contacts provide precise spring action ? no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
  • Two position power contact provided for two-circuit trac application.
Labels
  • UL and cUL Listed
  • ENERGY STAR Qualified
  • DesignLights Consortium Qualified.
Warranty
  • Warranty period is 5 years from date of purchase
  • Standard Juno Lighting Group product guarantee terms and conditions apply.
Product specifications subject to change without notice.
