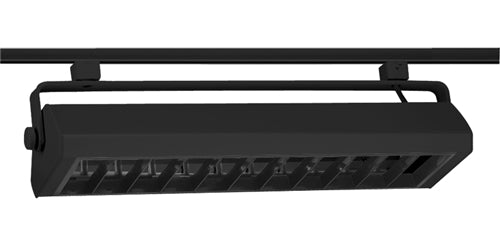

Juno Track Lighting TBX40E-BL (TBX 40E BL) Biax 40W HPF Electronic Ballast Wall Washer Black Color

Juno Track Lighting TBX40E-BL (TBX 40E BL) Biax 40W HPF Electronic Ballast Wall Washer Black Color

Price: $381.30
Price: $381.30

MODEL: Juno-TBX40E-BL

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

Lamp
  • Two 18W, 36W/39W or 40W high lumen compact fluorescent rapid start lamps by GE, Philips, or Osram-Sylvania
  • 4 pin 2G11 base.
Ballast
  • UL listed, CSA certified
  • HPF Electronic 120V
  • End of lamp life protection.
Aiming
  • 90° vertical aiming capability and 358° rotation (TBX40 has 90° vertical aiming capability only)
  • Two locking knobs provided.
Connections
  • Single, oversized adapter on "C" channel style yoke on 18W and 36/39W units
  • Two standard trac adapters on 40W unit.
Adapter
  • Copper alloy contacts provide precise spring action - no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures trac light to trac
  • “Pull-up” contact to up position for two-circuit application.
Materials
  • Computer contoured reflector
  • Sturdy extruded aluminum housing with die-cast aluminum end caps and textured paint.
Louver
  • One piece parabolic blade louvers are of sturdy, injection molded construction with snap-in design
  • Specular louvers offer controlled brightness, with minimal loss in efficiency
  • Equally efficient, white louvers have a more contemporary appearance and are easier to keep clean
  • Black louvers provide excellent brightness control, but with a moderate reduction in fixture efficiency
  • Louvers must be ordered separately.
Mounting For ceiling mount installations only.

Labels UL listed, CSA certified.
