Juno Track Lighting TL214LED-27K-WD (TL214LED 27KWD 90CRI) Trac 12 LED Module Low Power, 1.1W 2700K Color Temp, WarmDim, Clear Color
Juno Track Lighting TL214LED-27K-WD (TL214LED 27KWD 90CRI) Trac 12 LED Module Low Power, 1.1W 2700K Color Temp, WarmDim, Clear Color
MODEL: Juno-TL214LED-27K-WD
Couldn't load pickup availability
description
Distribution of 7W xenon lamps, utilizing approximately 15% of the energy and having a rated life of 50,000 hours. A unique combination of LEDs and electronic intelligence enables these WarmDim® modules to gradually shift to a warmer color temperature as they are dimmed. Available in an initial full-on color temperature of just less than 2700K, which gradually dims to 1800K as the input voltage is reduced, the white-light TL214LED-27K-WD is compatible with standard Trac 12 and Trac 12/25 trac operating with 12V AC power. The modules can be placed anywhere along the Trac, and the trac can be cut-to-length during installation, making Trac 12 LED Modules the most flexible, fully dimmable LED linear lighting choice.
| LED |
Unique, Patent Pending combination of LEDs produce a consistent, white light which warms when dimmed, similar to an incandescent lamp
90 CRI typical at full-on brightness Chromaticity range within a 3-step MacAdam ellipse. |

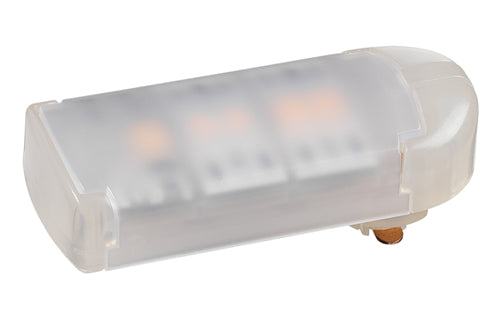

| Housing |
High temperature polycarbonate
Color-neutral, natural finish Lightly diffused lens to optimize light dispersion. |
| Electrical Contacts | Tempered phosphor bronze. |
| Transformers/Drivers |
Compatible with all 12VAC Trac 12 and Trac 12/25 Remote Mount Magnetic Transformers.
Compatible with all 12VAC TL601E and TL602E Electronic Drivers. |
| Dimming |
May be dimmed with dimmers tested and qualified by Juno for use with the non-resistive TL214LED Series load – see transformer/driver specifications for compatible dimmers

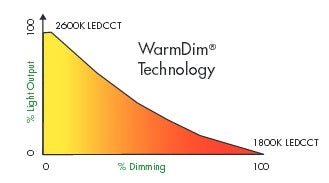

Module color temperature begins at just less than 2700K at full-on brightness and warms to 1800K at the end of its dimming range |
| Warranty |
Warranty period is 5 years from date of purchase for LED components
Standard Juno Lighting Group product guarantee terms and conditions apply Continuously operating the TL214LED above 12VAC will void the warranty. |
| Labels | UL/cUL Listed. |
