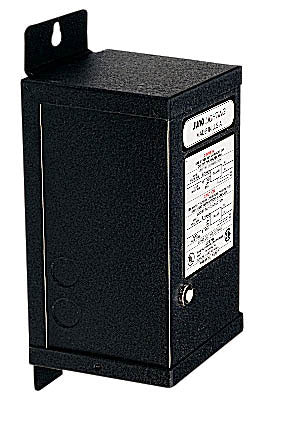

Juno Track Lighting TL575-40-277-BL (MAGXFMR 1C 40W 277 12AC BL) Trac 12 or Flex 12 Magnetic Low Voltage Transformer 12V, 0.5-40 Watts, 277VAC

Trac 12 remote mount magnetic transformers are designed to be installed in remote locations such as basements, attics, plenums and electrical closets. The location must be accessible and well ventilated with ambient temperatures below 140-degrees Fahrenheit. 12-volt transformers are typically used for spotlighting applications due to the ready availability of 12-volt MR11 and MR16 lamps. 24-volt transformers double the wattage capacity vs. a 12-volt system and are more commonly selected for linear lighting due to their capacity for longer runs per circuit. These transformers are designed for either 120-volt or 277-volt input, have premium resettable magnetic circuit breakers, dual-tap standard/ boost tap primary input leads to adjust for voltage drop and may be dimmed using dimmers qualified by Juno. See specification sheets for a list of qualified dimmers. Suitable for use with Trac 12 or Trac 12/25. Compatible with all Trac 12 low voltage luminaires including halogen and LED.

TL575-40-277-BL

• 12V-40VA Remote Magnetic Transformer
• Rated for 0.5-40 watts for incandescent or LED loads
• 277VAC input.

Construction

• Potted core and coil
• 13 volt boost tap
• Thermally protected primary
• Manually resettable, fast-acting magnetic circuit breaker on secondary
• Primary and secondary circuits physically and electrically isolated.

Circuit Breaker

• Resettable magnetic circuit breaker
• Provides faster short circuit protection than standard thermal circuit breakers
• Provides overload protection which is unaffected by ambient operating conditions
• Eliminates false overload failures due to elevated ambient temperatures which can occur with thermal circuit breakers
• Enables transformer to be mounted in any position.

Dimming

• 277V installations only
• Incandescent loads can be dimmed with high quality dimmers designed specifically for use with magnetic transformer
• LED loads may be dimmed using only dimmers that have been tested and qualified by Juno for use with Juno LED fixtures including: Lutron Diva DVLV-600P, Lutron Nova NLV-600, Lutron Ceana CNLV-600P, Lutron Skylark SLV-600P – consult factory to confirm compatibility of other dimmers prior to installation with Juno LED fixtures.

Installation

• Easy access front located wiring compartment
• Wire nut terminations for input and output circuits (except TF5150)
• Operate in accessible locations with ambient temperatures below 140° F.

Labels UL/CUL listed
