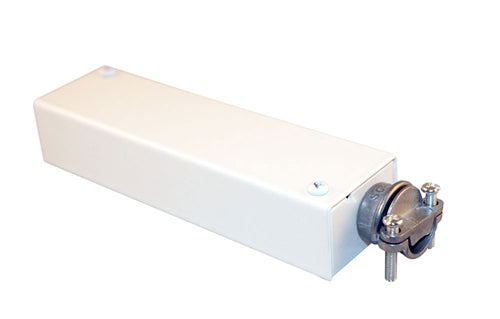

Juno Track Lighting TL602E-60-WH (TL602E 60W 120 12AC WH) 12V LED-Compatible, 0.5-60 Watts, 1-Circuit Electronic Transformer 120 VAC, IC-Rated, White Color

• 12V-60VA Class 2 electronic Driver/Transformer
• IC rated for recessed applications and can be buried in insulation
• Rated for 0.5-60 watts total load
• 120VAC input
• Ideally suited for driving Juno Mini LED Downlight and Gimbal fixtures
• May also be used to operate other low wattage LED or incandescent loads

Construction

• 18 gauge die formed steel housing
• Low-profile, 1” overall height
• Terminal block provided for direct wire inputs accepts 18-12 AWG
• All versions provided with terminal block on output side for quick and secure fixture wiring (Type CL2 or NEC equivalent 18-12 AWG)
• Direct-wire versions supplied with die-cast fitting for 3/8” flexible metal conduit
• White polyester powder coat paint finish

Installation

• Transformer should be located within 4' of first fixture in run
• To avoid excessive voltage drop in light output, make sure the fixture voltage at the last fixture is at least 10 volts
• Fully loaded run lengths longer than 18’ with 12 AWG is not recommended due to voltage drop
• Terminal block wiring connections for simpler, faster installation
• Provision for ground wire attachment
• Two 1/2” #6 wood screws provided for mounting to wood surfaces
• IC rated for use in insulated or non-insulated applications

Labels

• cULus Listed for use in the U.S. (UL 2108) and Canada (CSA C22.2 No. 250.0)
• Suitable for damp locations. Product specifications subject to change without notice.
