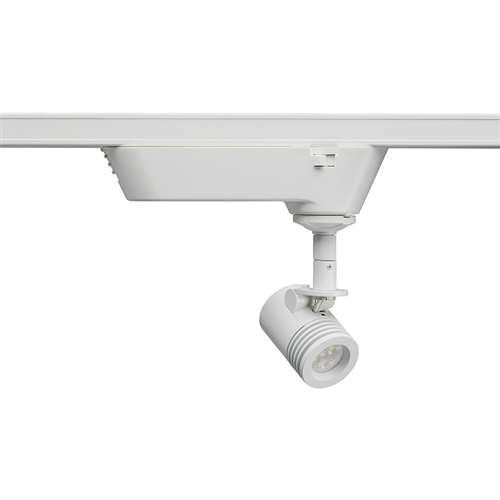

Juno Track Lighting TQJ114 G2 35K 80CRI NFL WH 12V Quick Jack LED Mini-Cylinder Spotlight 6W, 3500K, Narrow Flood, White Finish

PRODUCT DESCRIPTION
The Quick Jack LED Mini-Cylinder Spotlight approximates the light output and distribution of 20W MR11 halogen lamps, utilizing less than 1/3 of the energy and having a rated life of 50,000 hours. Available in 2700K, 3000K, 3500K and 4000K color temperatures, the white-light TQJ114 Series is compatible with Juno Trac-Master or Trac-Lites trac when combined with the T537QJU LED-compatible driver, with Juno MonoLine flexible line voltage trac when combined with MLTQJL75 LED-compatible transformer adapter, with Juno QJL LED-compatible MonoPoints, as well as with Juno QJ MonoPoints for use with remote mount transformers.

PRODUCT SPECIFICATIONS
Track Lighting System Compatibility

• Trac-Master 120V One Circuit System
• Trac-Lites One Circuit System
• MonoLine Flexible Trac System

LED

• High performance, low power LEDs provide outstanding reliability, performance and color quality/consistency
• White phosphor high performance LEDs designed to operate using 12-volt AC input
• Provides 80 CRI minimum.

Optical Performance

• Separate versions are offered which provide uniform spot, narrow flood and flood beam patterns.

Housing

• Precision machined aluminum construction.

Aiming

• 90 degree vertical aiming capability and 360 degree horizontal coverage.

Electrical Contacts

• Beryllium copper.

Mounting Options

• May be used with the following LED-compatible Quick Jack mounting methods:
  • Juno Trac-Master or Trac-Lites line voltage trac using T537QJU
  • Juno MonoLine line voltage trac using MLTQJL7
  • Juno QJL Monopoints with Integral Transformer
  • Juno Quick Jack remote Monopoints when operated with LED-compatible transformers/drivers
  • Juno Trac 12 or Trac 12/25 low voltage trac using TLQJA Quick Jack Adapter and LED-compatible transformers/drivers
  • and the TQJDL-CLAMP Quick Jack Power Clamp
• Other mounting methods may also be compatible -- consult factory for additional information.

Dimming

• May be dimmed with dimmers tested and qualified by Juno for use with the non-resistive TQJ114 Series load -- see transformer/ driver specifications for compatible dimmers
• Color temperature remains constant over dimming range
• Consult factory for additional information.

Warranty

• Warranty period is 5 years on LED components from date of purchase
• Standard Juno Lighting Group product guarantee terms and conditions apply
• Continuously operating the TQJ114 above 12VAC will void the warranty.

Labels

• ETL listed to UL 1598 for use in U.S.
• ETL listed to CSA C22.2 No. 250 for use in Canada.

Product specifications subject to change without notice.
