Juno TSLOT1 4FT 1000LMF 40K 90CRI OFF LAM FLL WH Trac Master 4' 10W/18W/20W/36W Linear LED Light, 1000 Lumens/Ft, 4000K, 90 CRI, On/Off Only, Lambertian Distribution, Flush Lens, White

Juno TSLOT1 4FT 1000LMF 40K 90CRI OFF LAM FLL WH Trac Master 4' 10W/18W/20W/36W Linear LED Light, 1000 Lumens/Ft, 4000K, 90 CRI, On/Off Only, Lambertian Distribution, Flush Lens, White

Price: $531.30
Price: $531.30

MODEL: Juno-TSLOT1-34028
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS

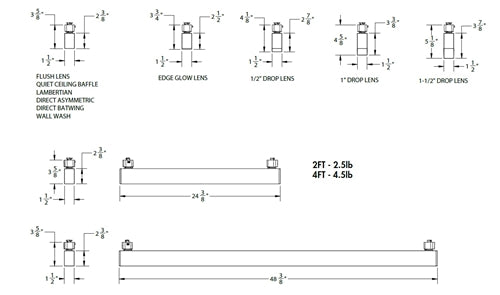

Housing
  • Nominal 2.375" x 1.5" extruded aluminum housing
  • 2FT versions are 2'-13/32" overall length
  • 4FT versions are 4'-13/32" overall length
  • White, black, or silver powdercoat paint finish.
LED
  • High-performance LEDs provide outstanding reliability, performance and color quality/consistency
  • Custom designed PCBA provides outstanding thermal management, yielding 75% average lumen maintenance at 100,000 hours of operation
  • White phosphor, high-brightness LEDs in 2700K, 3000K, 3500K, 4000K or 5000K color temperatures
  • 90 CRI minimum
  • Chromaticity range within a 2.5-step MacAdam Ellipse.
Driver
  • Solid state electronic, Class 2 compliant
  • Integral overcurrent and short circuit protection
  • FCC Part 15 Class B rated.
Dimming
  • TSLOT1 fixtures are not dimmable at this time.
Distribution/Shielding
  • Fixtures specified with flush lens (FLL) may be specified with a standard Lambertian distribution
  • Optional wall wash(WW), direct batwing (DBW), or direct asymmetric (DAS) optical options may be specified with flush lens to provide precise distribution for specific applications
  • Direct edgeglow (EGLD), quiet ceiling baffle (QCBx), and drop lens (DRPxx) shielding are also available with standard Lambertian distribution only.
Installation
  • Attaches to track via two standard track adapters, one of which contains electrical contacts
  • Fixtures may be installed end-to-end, creating a near-seamless illumination effect.
Juno Universal Track Adapter
  • Universally compatible with both Trac-Master 1-circuit or 2-circuit track, Trac-Lites track, monopoints and special mountings
  • Also UL Recognized for use on ConTech LT Series track
  • Copper alloy contacts provide precise spring action -- no arcing and will not take a set
  • True, positive electrical ground
  • On/off switch included
  • Patented embossed polarity arrows on bottom of adapter
  • Spring-loaded positive latch with embossed polarity arrows secures track light to track
  • Two-position power contact provided for two-circuit application.
Labels
  • UL and C-UL Listed
  • Assembled in U.S.A.
  • Minimum starting temperature of -22°F (-30°C)
  • Maximum ambient operating temperature of 104˚F (40˚C) for 4ft models and 95˚F (35˚C) for 2ft models.
Warranty
  • 5-year limited warranty
