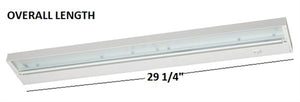

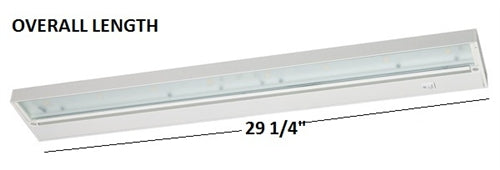

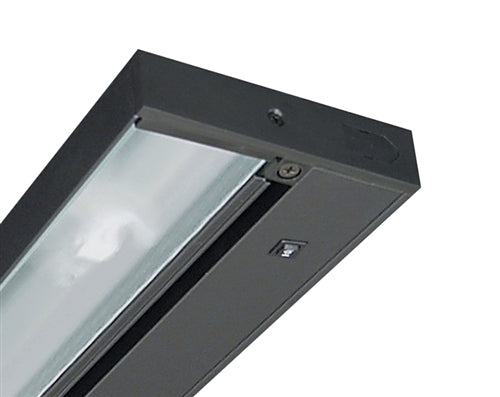

Juno Undercabinet Lighting UPL30-BL 30" 8-Lamp Pro LED Undercabinet Fixture, 9.5 Watts, 494 Lumens, Black Finish

The Pro-LED modular series with integral electronic driver operates 3000K LEDs for maintenance free 50,000 hour life using 1/8 the energy and virtually no heat when compared to halogen & xenon. Pro-LED fixtures are optimized for fast permanent installation, mounting either flush to the rear backsplash or to the front lip of cabinetry to suit project conditions and homeowner preference. Pro-LED fixtures are environmentally friendly and contain no harmful mercury.

• Latest generation high output / high efficiency Nichia brand LEDs for maximum reliability, performance, and color and consistency
• 70% of initial illumination at end of 50,000 hour rated life--LEDs will not burn out
• Cool to touch operation with virtually no heat on the cabinet bottom
• No UV or forward projected heat
• Hinged lens captured by spring loaded retention bar cannot accidentally fall out
• Modular design for maximum flexibility and quick installation allows up to 40 fixtures to plug together using the supplied internal straight connector or optional jumper cords
• Rear wireway access cover with flush non-metallic cable clamp and push in electrical connectors facilitate wiring without opening the fixture
• Available in Black, Brushed Bronze, Brushed Silver and Designer White finishes
• Consult factory for dimming information

model	UPL30
Number of LEDs	(8) 1-watt LEDs

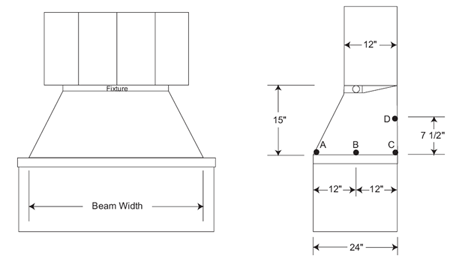

Beam Width *	32.5"
A	35"
B	97"
C	50"
D	38"

* Beam width defined as 50% of maximum footcandles
