Home > Juno Lighting > Juno WF2 DREG B ALO25 SWW5 90CRI 120 MW M6 10W 2" Deep Regressed Baffle LED Downlight, Selectable 544/725/907 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 120V, Forward/ Reverse Phase Dimming, Matte White

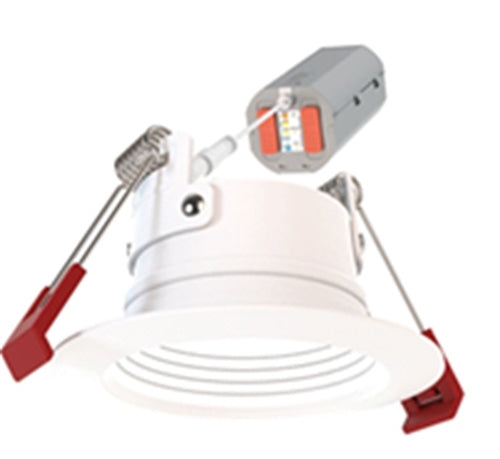

Juno WF2 DREG B ALO25 SWW5 90CRI 120 MW M6 10W 2" Deep Regressed Baffle LED Downlight, Selectable 544/725/907 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 120V, Forward/ Reverse Phase Dimming, Matte White
Juno WF2 DREG B ALO25 SWW5 90CRI 120 MW M6 10W 2" Deep Regressed Baffle LED Downlight, Selectable 544/725/907 Lumens, Selectable CCT 2700K/3000K/3500K/4000K/5000K, 90 CRI, 120V, Forward/ Reverse Phase Dimming, Matte White
Regular price
Price:
$39.11
Regular price
Price:
Sale price
$39.11
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
HOUSING
HOUSING
- Low profile, 2” aluminum housing with integral white flange provides passive thermal cooling to achieve L70 at 50,000 hours
- Baffle or smooth trim style offered
- Designed for installation directly into the plenum in IC (insulated ceiling) or non-IC construction
- FT4 3-pin plenum rated cable connector to connect from module to remote driver box
- Provided with spring clips for ease of installation

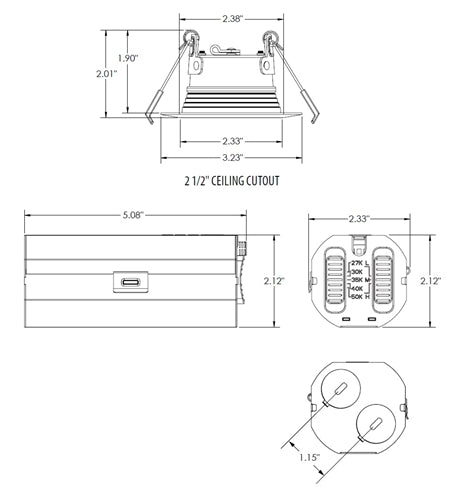

- Cutout templates are provided to ensure a correct sized hole is cut for proper installation of the trim. Size of hole must be a minimum of 2 1/2 inches
- Accommodates a 3/8" up to a 1 1/2”ceiling thickness
- Can be removed from the ceiling for service or replacement.
- Integrated light engine that mounts directly to one piece high purity aluminum housing providing superior heat transfer to ensure long life of the LEDs
- Designed with switchable LED color temperature and adjustable lumen output technology
- LED color temperature settings include 2700K, 3000K, 3500K, 4000K and 5000K; factory set at 3000K
- Color accuracy within 4 step McAdams Ellipse at the end CCT (2700K and 5000K), within 6 step McAdams Ellipse in the middle CCT (3000K, 3500K, and 4000K)
- 90CRI minimum
- Three lumen switching options include low, medium and high; factory set at high setting.
- Dedicated 120 volt driver
- Power factor > 0.9 at 120V input
- 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Dimming 100% to 10%
- For a list of compatible dimmers, see list of compatible dimmers
- Driver is integrated inside an IC rated steel remote junction box and provided with performance selector switches directly on the box to choose between (5) LED color temperatures and (3) lumen output settings for Low/Medium/High
- Features industry leading, contractor friendly large 12 cubic-inch wiring compartment with (2) 1/2" knockouts with slots for pryout
- Listed for through-branch wiring, maximum of 4 #12 branch circuit
- Flexible supply is recommended, and non-flexible supply requires top access
- 5-1/2" plenum space required for the installation of the driver box.
- Back-lit LED technology coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
- Deep regression of lens produces a low glare, efficient system with a downlight flood distribution providing even illumination for accent and general downlighting applications
- Equivalent to the performance of 65W incandescent sources.
- Rated for 50,000 hours at 70% lumen maintenance.
LABELS
WARRANTY- CSA certified to US and Canadian safety standards
- ENERGY STAR certified product
- Suitable for wet location, covered ceiling
- Air-Loc certified in accordance with ASTM E283-2004
- NOM Certified
- Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
- U.S. Patent No. 10,681,784.
- 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
