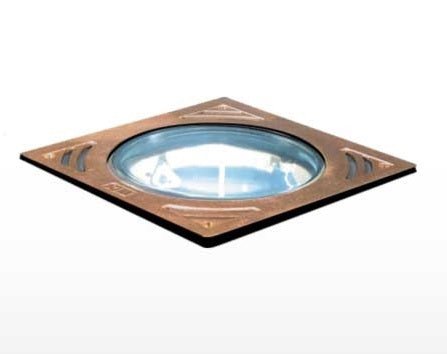

Kim Lighting 6360/NF/70PMH240 Cool-Lens Well Light, Narrow Flood Optic, 70W, Pulse Start Metal Halide, 240V, Cast Bronze Natural Finish

Lamp Housing: Die-cast brass lamp housing with porcelain medium base socket, 4KV pulse rated. Convex tempered clear glass lens.

Reflector: Spun specular Alzak® aluminum. Available in spot or narrow flood beam spreads. Easily removed for PAR lamps if desired.

Gasketing: Silicone gaskets used throughout.

Fixture Cord: 6' long #16-3 with 200°C silicone wire insulation protected by a 200°C teflon insulated jacket; water resistant cord approved for outdoor use. Prewired to fixture through silicone grommet.

Support Brackets: Cast bronze fixture support ring with stainless steel support brackets and hardware.

Well: 12-3/4" diameter (.406" wall) x 20" depth burial PVC pipe.
Lens frame adapter constructed from high temperature, SMC compression molded, fiberglass impregnated, heavy wall composite.
Charcoal gray.

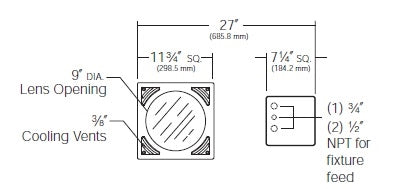

Lens Frame: One-piece, cast bronze, natural finish. Four captive 5/16" blackened stainless steel hex-socket cap screws. 3/8" wide Integral cooling vents on each corner meet ADA requirements.

Primary Lens:Tempered clear glass lens 9" dia. x 5/16" thick, flush with lens frame, slightly crowned.

Optional Low-Temperature Secondary Lens: Constructed of borosilicate glass with a hard, first surface dichroic coating.
Reflects infrared (heat) away from the exposed primary lens, but transmits visible rays through. (See page 5 - Lens Temperature Chart).

Optional Slip-Resistant Primary Lens: Tempered clear glass lens with four 1/2" wide concentric etched rings, flush with lens frame, slightly crowned.

Ballast: High power factor -20°F starting, mounted on tray, 120 volt thru 347 volt standard.

Ballast Box: High temperature, SMC compression molded featuring long-fiber fiberglass impregnated heavy wall construction. Wall separates ballast chamber from splice compartment, splice area 32 cu in.; prewired, anti-siphon plugs to and from ballast chamber. Conduit entry, two 3/4" NPT for through wiring, one 1/2" NPT for fixture supply.

Ballast Cover: Cast bronze, natural finish. Four captive, blackened stainless steel hex-socket cap screws.
