Kim Lighting AN52/3L3KUVDB 120/277 Volt Die-Cast Aluminum LED Landscape Path Bell Light, 5.3W, 3 LEDs, 3000K, Dark Bronze Finish

PRODUCT SPECIFICATIONS

Housing and Lens Frame: Die-cast, low copper alloy (<0.6% Cu) aluminum. Frame with silicone gasket, attaches to housing with four captive 1/4-20 stainless steel, slotted cap screws.

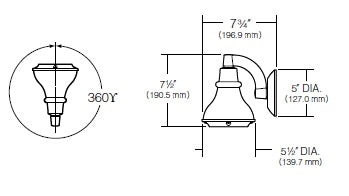

Arm: Cast aluminum. Head is independently rotatable 360° vertically from top dead center. Head may be positioned straight up. Set screw provided for locking position.

Wall Plate: Die-cast, low copper alloy (<0.6% Cu) aluminum.
Attaches to stainless steel plate for mounting to any standard electrical outlet box. Internal set screw provided for locking position.

Lens: Tempered clear soda lime glass with silicone gasket.
Flush with lens frame to promote water runoff when positioned upward.

Wiring: No. 18AWM rated 105°C.

Finish: Super TGIC thermoset polyester powder coat paint, 2.5 mil nominal thickness, applied over a titanated zirconium conversion coating; 2500 hour salt spray test endurance rating.
Standard colors are Black (BL), Dark Bronze (DB), and Verde Green (GR).

Optical System: A total of 3 or 9 LED emitters configured in a rectangular array comprised together as a module. Available in 3000K, 4200K, and 5100K.

Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40ºF. starting temperature. All drivers are Underwriters Laboratories recognized.
