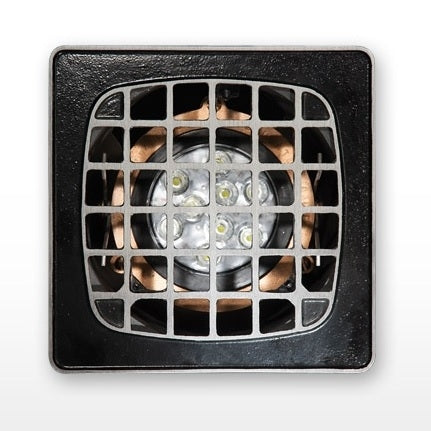

Kim Lighting C54S3/9L5KUV Well Light, 120 to 270V LED, Spot Optic, 350mA, 11W, 9 LEDs, 5100K, Spun Copper and Bronze Clamping Ring

PRODUCT SPECIFICATIONS

Housing: Spun copper, bronze clamping ring, prewired cord through brass seal.

Optical System: High performance acrylic lens optic securely attached to internal heat sink for maximum thermal dissipation.

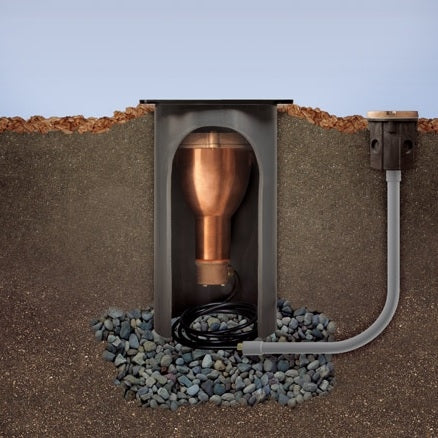

Well: 9" diameter x 14-3/4" depth direct burial PVC pipe.

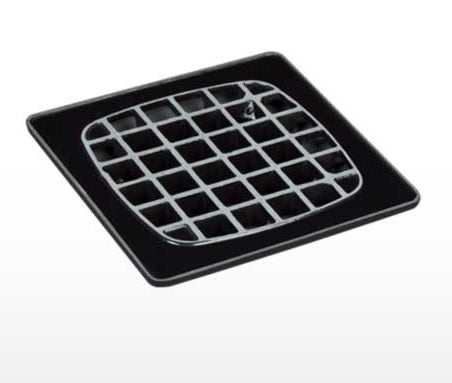

Louver: Cast aluminum finished black with polished edges, secured to well with socket head set screws. Slot sizes allow light and drainage, and prohibit litter from collecting in the well, however, not recommended for pedestrian or walkover traffic.

Gasketing: Silicone gaskets throughout.

Fasteners: Stainless steel.

Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40ºF. starting temperature. All drivers are Underwriters Laboratories recognized.

Junction Box: ABS plastic, 3/4” conduit entry with 3/4” to 1/2” bushing, brass cover, rigid conduit and brass seal for fixture cord, four 3/4" NPT conduit entries in sides, two 3/4" NPT conduit entry in bottom. 21 cu. in. volume.

Listed to: UL 1598 Standard for Luminaires - UL 8750 Standard for Safety for Light Emitting Diode (LED) Equipment for use in Lighting Products and CAN/CSA C22.2 No. 250.0 -08 Luminaires. LEDs and drivers are RoHS compliant.

CAUTION: Fixtures must be grounded in accordance with national, state and/or local electrical codes, Failure to do so may result in serious personal injury.
