Home > Hubbell Lighting > Kim CC21K2-72L-465-5K7-3-LGT-UNV Curvilinear LED Upgrade Kit, 12000 Lumens, 5000K, 70 CRI, Type III Distribution, Light Grey Matte Textured, 120-277V

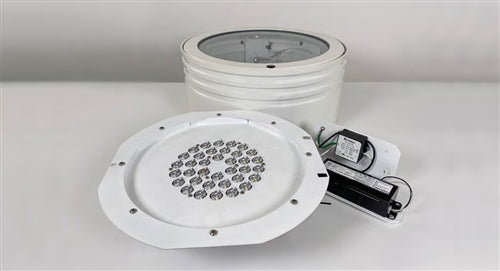

Kim CC21K2-72L-465-5K7-3-LGT-UNV Curvilinear LED Upgrade Kit, 12000 Lumens, 5000K, 70 CRI, Type III Distribution, Light Grey Matte Textured, 120-277V
Kim CC21K2-72L-465-5K7-3-LGT-UNV Curvilinear LED Upgrade Kit, 12000 Lumens, 5000K, 70 CRI, Type III Distribution, Light Grey Matte Textured, 120-277V
Regular price
Price:
$2,465.23
Regular price
Price:
Sale price
$2,465.23
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- All hardware is stainless steel or electro-zinc plated steel
OPTICS
- Molded silicone gasket ensures a weatherproof seal around each individual LED
- Features revolutionary individual LED optical control based on high performance TIR optical designs
- Optional BackLight Control for complete control of unwanted backlight
- Type 1, 2, 3, 4, 4W, 5QM, 5QN, 5R, and 5W standard distributions Custom available
INSTALLATION
- Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
ELECTRICAL
- Dimming range from 10% to 100% through the use of standard 0-10V interface on the programmable driver
- Modular wiring harness in the service area provides user access to the dimming circuitry
- Optional factory programmed dimming profile
- Surge protection: 10kV surge suppression
- SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts
- Wiring: 14GA wires rated 150°C
CERTIFICATIONS AND LISTINGS
- Listed to UL1598 and CSA C22.2#250.0-24 for wet locations
- RoHS compliant
- IDA approved, 3000K and warmer CCTs only
WARRANTY
- 5 year warranty
Download PDF specification Share your knowledge of this product. Be the first to write a review »
