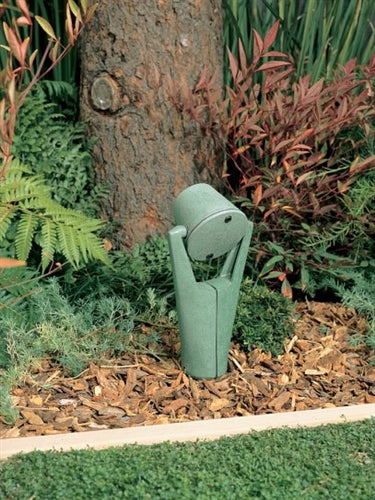

Kim Lighting ELL271DB 120V 10W LED Halogen Die-Cast Aluminum Landscape Light, Ravenna Lowlighter Style, Dark Bronze Finish

PRODUCT SPECIFICATIONS

Lamp Housing: Die-cast low copper aluminum, stainless steel fasteners and stainless steel set screw lock for aiming pivot.

Aiming: Aimable 358° vertically, horizontal aiming controlled by installation on mounting device.

Ravenna Yoke: Die-cast low copper aluminum, stainless steel fasteners and 1/2” NPSM brass nipple mount.

Lens: Tempered glass, 1/8” nominal thickness.

Gasketing: Silicone gaskets used throughout.

Transformer: 120 volt to 12 volt, 20 watt electronic stepdown transformer, enclosed and gasketed in yoke base.

Wiring: No. 18AWM rated 105°C.

Driver/Optical System: 3 LED emitters configured in a triangle array comprised together as a module. Each LED is encapsulated under a precision optical prism to produce a narrow flood pattern. The -40c driver is within the module and operates on 12V AC or DC current, 10 watt, 0.83 amp.

Finish: Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat finish. Standard colors include (BL) Black, (DB) Dark Bronze, Verde Green (GR).

Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
