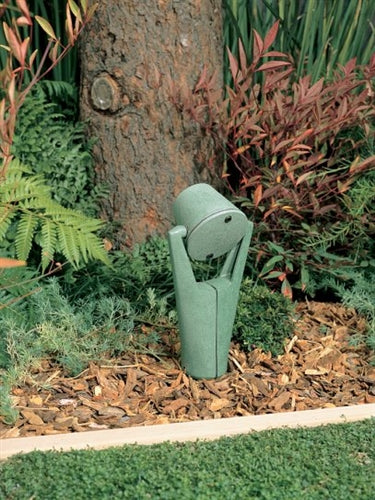

Kim Lighting KLV270DB 12V Low Voltage 20W-50W MR16 Halogen Die-Cast Aluminum Landscape Light, Ravenna Lowlighter Style, Dark Bronze Finish
Kim Lighting KLV270DB 12V Low Voltage 20W-50W MR16 Halogen Die-Cast Aluminum Landscape Light, Ravenna Lowlighter Style, Dark Bronze Finish
description
PRODUCT SPECIFICATIONS
Lamp Housing: Die-cast low copper aluminum with die-cast
cover, stainless steel fasteners, and stainless steel set screw
lock for aiming pivot.
Aiming: Aimable 358° vertically, horizontal aiming controlled
by installation on mounting device.
Ravenna Yoke: Cast aluminum, stainless steel fasteners and 1/2 " NPSM brass nipple mount.
Lens: Tempered glass, 1/8" nominal thickness.
Gasketing: Silicone gaskets used throughout.
Socket: G4 to GY6.35 socket for bipin lamp.
Transformer: Remote transformer required.
Wiring: 6' No. 18-2 12 volt cable with spade connectors for
low voltage cable system connection.
Finish: Super TGIC thermoset polyester powder coat paint,
2.5 mil nominal thickness, applied over a titanated zirconium
conversion coating; 2500 hour salt spray test endurance rating.
Standard colors are Black (BL), Dark Bronze (DB),
and Verde Green (GR).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
