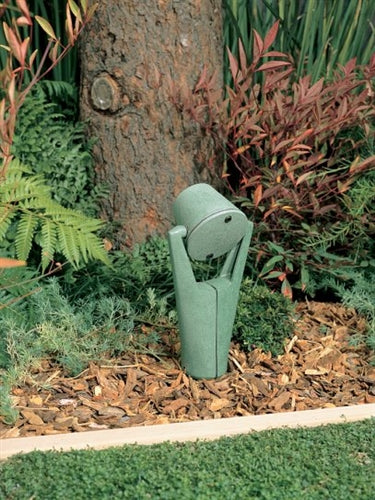

Kim Lighting KLVL276VG 12V Low Voltage 10W LED Halogen Die-Cast Brass Landscape Light, Ravenna Lowlighter Style, Verde Green Patina Finish

PRODUCT SPECIFICATIONS

Lamp Housing: Die-cast brass, stainless steel fasteners and stainless steel set screw lock for aiming pivot.

Aiming: Aimable 358° vertically, horizontal aiming controlled by installation on mounting device.

Ravenna Yoke: Die-cast low copper aluminum, stainless steel fasteners and 1/2” NPSM brass nipple mount.

Lens: Tempered glass, 1/8” nominal thickness.

Gasketing: Silicone gaskets used throughout.

Transformer: Remote low voltage transformer required.

Wiring: 6’ No. 18-2 12 volt cable with spade connectors for low voltage cable system connection.

Driver/Optical System: 3 LED emitters configured in a triangle array comprised together as a module. Each LED is encapsulated under a precision optical prism to produce a narrow flood pattern. The -40c driver is within the module and operates on 12V AC or DC current, 10 watt, 0.83 amp.

Finish: Natural Brass (NB) or Verde Green Patina (VG).

Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
