Kim Lighting 3091DB 100W A21 Incandescent 120V Cast Aluminum Path-Lighter Landscape Light, Dark Bronze Finish

PRODUCT SPECIFICATIONS

Housing: One piece cast aluminum, two 1/2" NPT in bottom.

Top: Cast aluminum with flush stainless steel flat slotted screws.

Lens: Molded borosilicate prismatic glass with removable 180° reflector shield.

Gasketing: Silicone gaskets used throughout.

Socket: (3091) Porcelain medium base, (3095) G23D 2-pin base.

Electrical Components: (3095) Normal power factor toroidal 25°F starting.

Finish: Super TGIC thermoset polyester powder coat paint, 2.5 mil nominal thickness, applied over a chromate conversion coating; 2500 hour salt spray test endurance rating. Standard colors are Black (BL), Dark Bronze (DB), and Verde Green (GR).

Certification: UL Listed to U.S. and Canadian safety standards for wet locations. Fixture manufacturer shall employ a quality program that is certified to meet the ISO 9001:2000 standard.

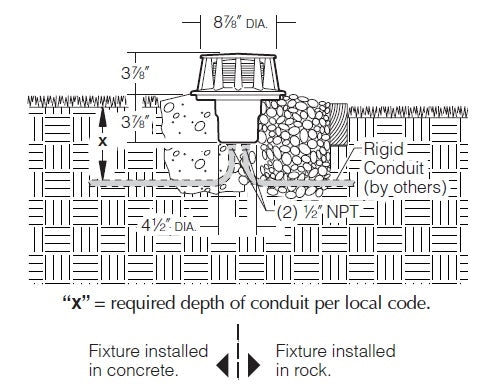

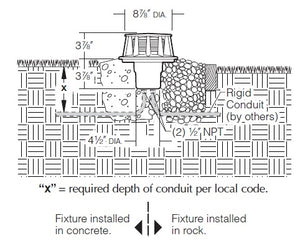

MOUNTING INFORMATION

• Clean appearance - no visible junction box.
• Very rigid when installed in concrete.
• Can be installed flush with paving surface.

CAUTION: Fixture must not not contact soil or standing water. Provide drainage away from fixture. Install a barrier frame to isolate fixture and provide a trim edge for landscaping.
