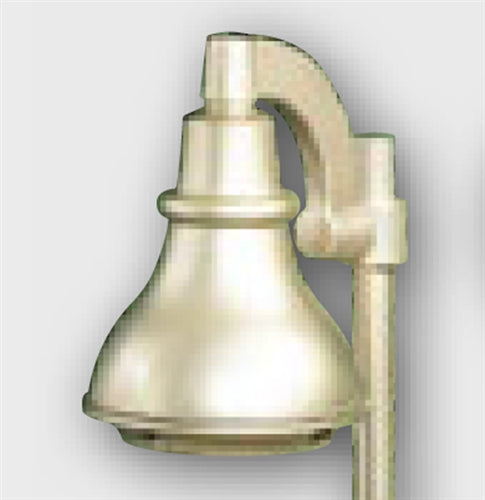

Kim Lighting BN167/3L4KUV/NB 120/277 Volt Die-Cast Brass LED Landscape Path Bell Light, 5.3W, 3 LEDs, 4000K, Natural Brass Finish

PRODUCT SPECIFICATIONS

Housing and Lens Frame: Die-cast brass. Frame with silicone gasket, attaches to housing with four captive 1/4-20 stainless steel, slotted cap screws.

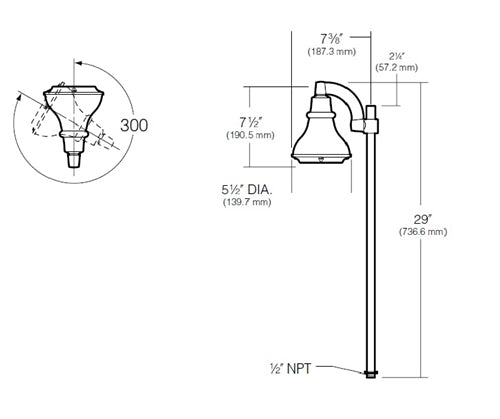

Arm: Cast brass. Head is independently rotatable 300 degree vertically from top dead center. Head may be positioned straight up. Horizontal rotation of entire fixture controlled by installation on mounting device. Set screw provided for locking position.

Stem: 1/2" schedule 40 brass pipe with 1/2" NPT at bottom plus solid brass locknut for mounting.

Lens: Tempered clear soda lime glass with silicone gasket. Flush with lens frame to promote water runoff when positioned upward.

Wiring: No. 18AWM rated 105 degree C.

Finish: Natural Brass(NB) and Verde Green Patina (VG).

Optical System: A total of 3 or 9 LED emitters configured in a rectangular array comprised together as a module. Available in 3000K, 4200K, and 5100K.

>Driver

: Universal Voltage from 120 to 277V with a ±10% tolerance. -40 degree F. starting temperature. All drivers are Underwriters Laboratories recognized.
