PRODUCT SPECIFICATIONS
Hood: Spun copper with low copper alloy aluminum diecast reflector and hinge assembly. The hood is either raw copper or verde green patina and the reflector is always painted white. The hood reflector assembly is removable with a no-tool stainless steel lever latch. Hood is available in three styles: Pagoda, Cone, and Mushroom.
Husk: Die-cast brass with stainless steel hinge / latch assembly.
Globe: Fluted glass.

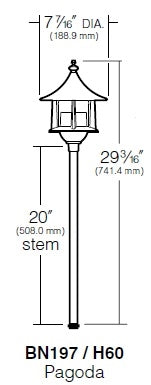

Stem: 20" schedule 40 red brass pipe with 1/2" NPT at bottom plus solid brass locknut for secure mounting.
Wiring: No. 18AWM rated 105°C.
Optical System: A total of 3 LED emitters configured in a rectangular array comprised together as a module. Available in 3000K, 4200K and 5100K.
Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40ºF. starting temperature. All drivers are Underwriters Laboratories recognized.
Finish: Natural Brass( NB) and Verde Green Patina (VG).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
