Kim Lighting C54 Well Light, 120 Volt, 150W PAR38 Incandescent / Halogen / 140W R40 Incandescent, Spun Copper and Bronze Clamping Ring

Housing: Spun copper, bronze clamping ring, prewired cord through brass seal.

Lens: Convex tempered clear glass with silicone gasket.

Socket: Porcelain medium base.

Well: 9" diameter x 14-3/4" depth direct burial PVC pipe.

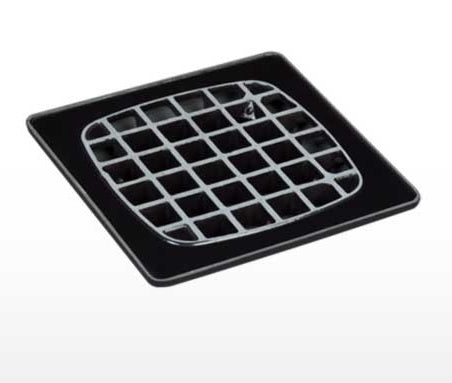

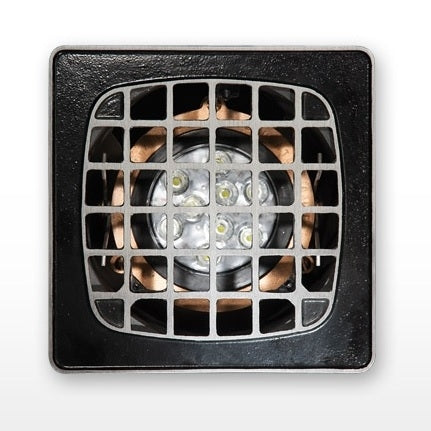

Louver: Cast aluminum finished black with polished edges, secured to well with socket head set screws. Slot sizes allow light and drainage, and prohibit litter from collecting in the well, however, not recommended for pedestrian or walkover traffic.

Junction Box: Die-cast brass, K" rigid conduit and brass seal for fixture cord, two 1/2" NPT conduit entries in sides, one1/2" NPT conduit entry in bottom. 21 cu. in. volume.

NOTE: Fixture will tilt 15° within well. If greater tilt is needed, entire well can be installed at an angle.

CAUTION: Not approved for walk-over areas. Conduit entries must be RTV sealed. Do not submerge. Provide drainage during installation (by others) to prevent flooding.
