PRODUCT SPECIFICATIONS

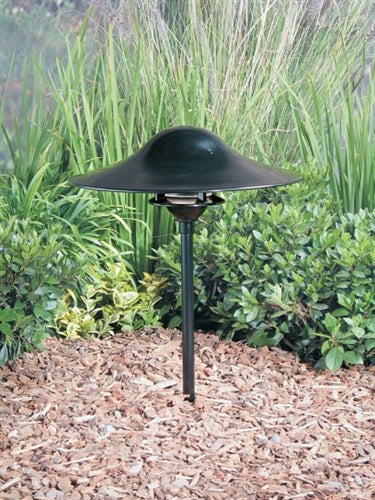

Hood: Spun aluminum with low copper alloy aluminum
die-cast reflector and hinge assembly. The hood is
painted to order and the reflector is always painted white.
The hood reflector assembly is removable with a no-tool
stainless steel lever latch. Hood is available in three
styles: Pagoda, Cone, and Mushroom.
Husk: Die-cast low copper alloy aluminum with stainless
steel hinge / latch assembly.
Globe: Fluted glass.
Stem: 8" schedule 40 aluminum pipe with 1/2" NPT at
bottom plus solid brass locknut for secure mounting.
Wiring: No. 18AWM rated 105°C.
Optical System: A total of 3 LED emitters configured
in a rectangular array comprised together as a module.
Available in 3500K, 4200K and 5100K.
Driver: Universal Voltage from 120 to 277V with a
±10% tolerance. -40ºF. starting temperature. All drivers
are Underwriters Laboratories recognized.
Finish: Each luminaire receives a fade and abrasion
resistant, electrostatically applied, thermally cured,
triglycidal isocyanurate (TGIC) polyester powdercoat finish. Standard colors are Black (BL), Dark Bronze
(DB), and Verde Green (GR).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
