PRODUCT SPECIFICATIONS

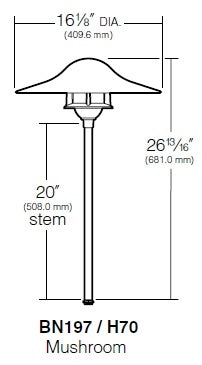

Hood: Spun aluminum with low copper alloy aluminum
die-cast reflector and hinge assembly. The hood is painted to order and the reflector is always painted white. The hood
reflector assembly is removable with a no-tool stainless steel
lever latch. Hood is available in three styles: Pagoda, Cone,
and Mushroom.
Husk: Die-cast low copper alloy aluminum with stainless
steel hinge / latch assembly.
Globe: Fluted glass.
Stem: 20" schedule 40 aluminum pipe with 1/2" NPT at
bottom plus solid brass locknut for secure mounting.
Wiring: No. 18AWM rated 105°C.
Optical System: A total of 3 LED emitters configured in a
rectangular array comprised together as a module. Available
in 3000K, 4200K and 5100K.
Driver: Universal Voltage from 120 to 277V with a
±10% tolerance. -40ºF. starting temperature. All drivers are
Underwriters Laboratories recognized.
Finish: Each luminaire receives a fade and abrasion
resistant, electrostatically applied, thermally cured,
triglycidal isocyanurate (TGIC) polyester powdercoat
finish. Standard colors include (BL) Black, (DB) Dark
Bronze, (WH) White, (PS) Platinum Silver, (SG) Stealth
Gray, (LG) Light Gray, and (CC) Custom Color (Include
RAL#).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
