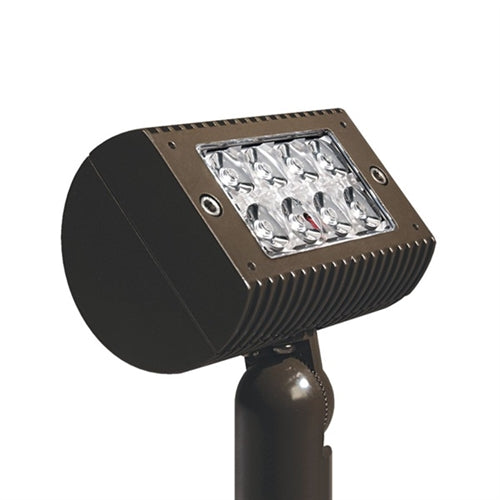

Kim Lighting EL218W5-8L3K-UV-BL 16W Micro-Flood LED Light, Wide Flood, 550mA, 8 LEDs, 3000K, 120-277V, Black Finish

PRODUCT SPECIFICATIONS

Housing and Lens Frame: Die-cast low copper alloy (<0.6% Cu) aluminum.

Swivel: Die-cast aluminum with locking teeth and 1/2" solid brass NPT mount. Provides horizontal rotation independent of the threaded mount. Swivel locked by 1/4-20 stainless set screw. Clear anodized prior to powder coating for added corrosion resistance.

Gasketing: Silicone gaskets throughout.

Fasteners: Stainless steel.

Wiring: No. 18AWM rated 105°C.

Optical System: High performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation.

Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40ºF. starting temperature. All drivers are Underwriters Laboratories recognized. Optional dimmable driver available. See page 2 PDF Specification.

Finish: Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat finish. Standard colors include (BL) Black, (DB) Dark Bronze, (GR) Verde Green.

Listed to: UL 1598 Standard for Luminaires - UL 8750 Standard for Safety for Light Emitting Diode (LED) Equipment for use in Lighting Products and CAN/CSA C22.2 No. 250.0 -08 Luminaires. LEDs and drivers are RoHS compliant.

CAUTION: Fixtures must be grounded in accordance with national, state and/or local electrical codes, Failure to do so may result in serious personal injury.
