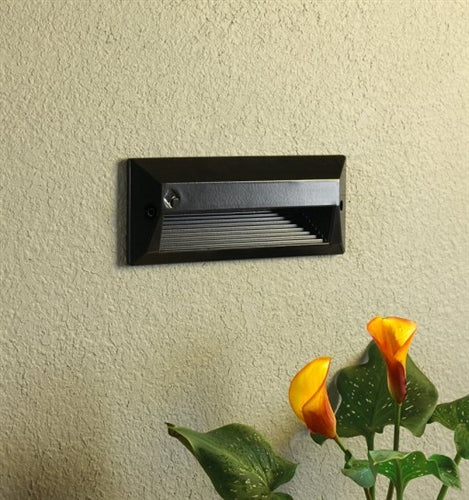

Kim Lighting EL805BL 9W Twin Tube Fluorescent 120V Die-Cast Aluminum Rectangle Landscape Step Light, Black Finish

PRODUCT SPECIFICATIONS

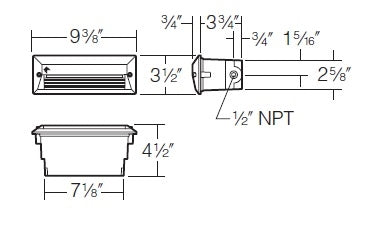

Housing: Die-cast low copper alloy aluminum with clear anodized finish. Two 1/2" NPT in sides. Housing mounts into concrete, brick, or masonry (non-combustible materials). Internal splice area provided behind lamp plate.

Lens Frame: Die-cast aluminum, with silicone gasket, attaches to housing with two captive 10-32 stainless steel, hex socket cap screws.

Lens: Tempered prismatic glass with silicone gasket, concealed above lens frame opening.

Socket: (EL800) G4 to GY6.35 socket for bipin lamp. (EL805) G23D 2-pin for twin tube fluorescent lamp.

Transformer: (120 Volt - EL800) 120 Volt to 12 Volt, 20 to 50 watt electronic stepdown transformer.
(120 Volt - EL805) 9 watt, Normal power factor, 32°F, starting.
(277 Volt - EL806) 9 watt, Normal power factor, 32°F, starting.

Finish: On Lens Frame only, Super TGIC thermoset polyester powder coat paint, 2.5 mil nominal thickness, applied over a Titanated Zirconium conversion coating; 2500 hour salt spray test endurance rating. Standard colors are Black (BL), Dark Bronze (DB), and Verde Green (GR).

Certification: UL Listed to U.S. and Canadian safety standards for wet locations. Fixture manufacturer shall employ a quality program that is certified to meet the ISO 9001:2000 standard.
