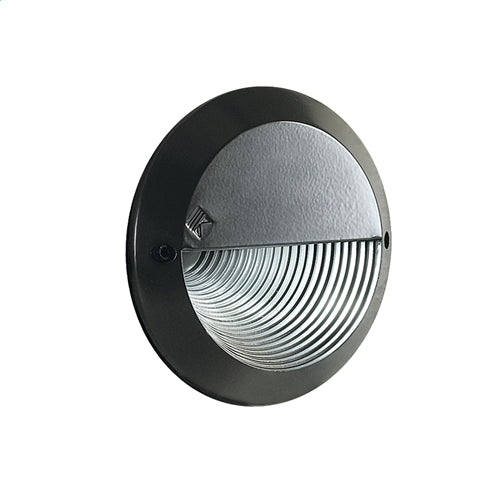

Kim Lighting EL817/3L5KUV/BL 5.3W 120 / 277 Volt Die/Cast Aluminum LED Round Landscape Step Light, 3 LEDs, 5100K Color Temperature, Black Finish
Kim Lighting EL817/3L5KUV/BL 5.3W 120 / 277 Volt Die/Cast Aluminum LED Round Landscape Step Light, 3 LEDs, 5100K Color Temperature, Black Finish
Regular price
Price:
$196.84
Regular price
Price:
Sale price
$196.84
Unit price
per
MODEL: Kim-EL817-3L5KUV-BL
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color.
description
PRODUCT SPECIFICATIONS
Housing: Die-cast low copper alloy (<0.6% Cu) aluminum with clear anodized finish. Two K" NPT in sides. Housing mounts into concrete, brick, or masonry (non-combustible materials). Internal splice area provided behind lamp plate.
Lens Frame: Die-cast aluminum, with silicone gasket, attaches to housing with two captive 10-32 stainless steel, hex socket cap screws.
Lens: Tempered prismatic glass with silicone gasket, concealed above lens frame opening.
Finish: On Lens Frame only, each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat finish. Standard colors are Black (BL), Dark Bronze (DB), and Verde Green (GR).
Optical System: A total of 3 or 9 LED emitters are configured together as a module. Available in 3000K, 4200K, and 5100K.
Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40° F. starting temperature. All drivers are Underwriters Laboratories recognized.
Housing: Die-cast low copper alloy (<0.6% Cu) aluminum with clear anodized finish. Two K" NPT in sides. Housing mounts into concrete, brick, or masonry (non-combustible materials). Internal splice area provided behind lamp plate.
Lens Frame: Die-cast aluminum, with silicone gasket, attaches to housing with two captive 10-32 stainless steel, hex socket cap screws.
Lens: Tempered prismatic glass with silicone gasket, concealed above lens frame opening.
Finish: On Lens Frame only, each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat finish. Standard colors are Black (BL), Dark Bronze (DB), and Verde Green (GR).
Optical System: A total of 3 or 9 LED emitters are configured together as a module. Available in 3000K, 4200K, and 5100K.
Driver: Universal Voltage from 120 to 277V with a ±10% tolerance. -40° F. starting temperature. All drivers are Underwriters Laboratories recognized.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
