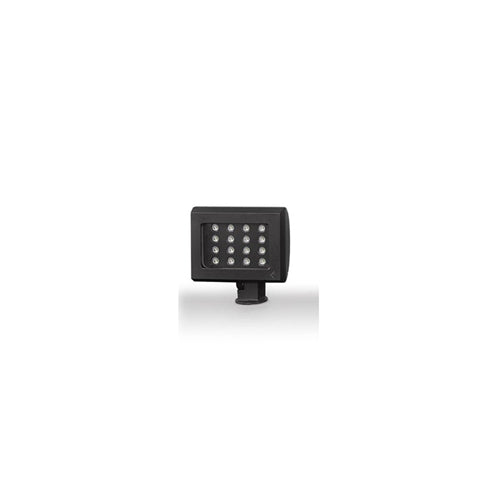

Kim Lighting KFL1-16L-40-5K7-MF-UNV-K-DBS-HS-JBR21 40W LED Floodlight, 4000 Lumens, 5000K, 70 CRI, Medium Flood, 120-277V, Threaded Knuckle Mount, Dark Bronze Gloss Smooth, Half Glare Shield Optic, (2) 1/2" NPT in Sides (2) 1/2" NPT in Bottom
Kim Lighting KFL1-16L-40-5K7-MF-UNV-K-DBS-HS-JBR21 40W LED Floodlight, 4000 Lumens, 5000K, 70 CRI, Medium Flood, 120-277V, Threaded Knuckle Mount, Dark Bronze Gloss Smooth, Half Glare Shield Optic, (2) 1/2" NPT in Sides (2) 1/2" NPT in Bottom
Regular price
Price:
$2,228.00
Regular price
Price:
Sale price
$2,228.00
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- One piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 with vents and .100” minimum wall thickness
- Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat
- Lens is impact resistant 1/8” tempered glass with anti-reflective coating
- Lens has a one-piece extruded vulcanized silicone gasket
- Lens frame one piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 and .100” minimum wall thickness
- Lens frame has a one-piece O-ring extruded vulcanized silicone gasket
- Mid-frame one piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 and .100” minimum wall thickness
- Mid-frame secures to Lens Frame and housing by stainless steel recessed Allen-head screws
- Silicone gaskets throughout
- All external fasteners are stainless steel
- LEDs mount to a metal printed circuit board assembly (MCPCB)
- Optical lenses are clear injection molded PMMA acrylic
INSTALLATION
ELECTRICAL- Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
- Universal voltage, 120 through 277V with a ±10% tolerance. Driver is Underwriters Laboratories recognized
- High voltage configurations, 347/480. Driver has a 0-10V dimming interface for multi-level illumination options. Driver is Underwriters Laboratories recognized
- "Thermal Shield", secondary side, thermistor provides protection for the sustainable life of LED module and electronic components
- Drivers shall have greater than a 0.9 power factor, less than 20% harmonic distortion, and be suitable for operation in -40°C to 40°C ambient environments
- Luminaire shall be capable of operating at 100% brightness in a 40°C environment. Both driver and optical array have integral thermal protection that will dim the luminaire upon detection of temperatures in excess of 85°C
- Dimming range from 10% to 100% through the use of standard 0-10V interface on the programmable driver
- Modular wiring harness in the service area provides user access to the dimming circuitry
- Optional factory programmed dimming profile
- Surge protection: 10,000k in parallel, 20,000k in series
- SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts
- Wiring: No. 18AWM rated 105°C, wet rating.
- UL 1598 Standard for Luminaires
- IP66 certified
- 3G rated for ANSI C136.31 high vibration applications
- RoHS compliant
- IEC 66262 Mechanical Impact Code IK08
- 5 year warranty
