Home > Hubbell Lighting > Kim Lighting KFL3-40L-90-3K7-WF-UNV-K-DBT 90W LED Floodlight, 10000 Lumens, 3000K, 70 CRI, Wide Flood Beam Spread, 120-277V, Threaded Knuckle, Dark Bronze Matte Textured

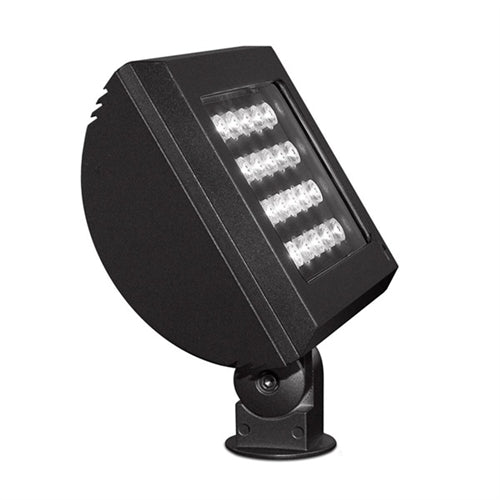

Kim Lighting KFL3-40L-90-3K7-WF-UNV-K-DBT 90W LED Floodlight, 10000 Lumens, 3000K, 70 CRI, Wide Flood Beam Spread, 120-277V, Threaded Knuckle, Dark Bronze Matte Textured
Kim Lighting KFL3-40L-90-3K7-WF-UNV-K-DBT 90W LED Floodlight, 10000 Lumens, 3000K, 70 CRI, Wide Flood Beam Spread, 120-277V, Threaded Knuckle, Dark Bronze Matte Textured
Regular price
Price:
$2,173.13
Regular price
Price:
Sale price
$2,173.13
Unit price
per
Ordering a large quantity?
Request a quote
Find your items based on model numbers and product specification. Photo might not represent the actual item or color.
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- One piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 with vents and .100” minimum wall thickness
- Separate internal driver compartment rated for IP66 ingress protection • Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat.
- Standard colors include (BLS) Black Gloss Smooth, (BLT) Black Matte Textured, (DBS) Dark Bronze Gloss Smooth, (GTT) Graphite Matte Textured, (LGS) Light Gray Gloss Smooth, (PSS) Platinum Silver Smooth, (VGS) Verde Green Smooth, (WH) White, and (CC) Custom Color (Include RAL#).
- Lens is impact resistant 1/8” tempered glass with anti-reflective coating
- Lens has a one-piece extruded vulcanized silicone gasket
- Lens frame one piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 and .100” minimum wall thickness
- Lens frame has a one-piece O-ring extruded vulcanized silicone gasket
- Mid-frame one piece die-cast, low copper (<0.6% Cu) Aluminum Alloy 360 and .100” minimum wall thickness
- Mid-frame secures to Lens Frame and housing by stainless steel recessed Allen-head screws
- Silicone gaskets throughout
- LEDs mount to a metal printed circuit board assembly (MCPCB)
- Optical lenses are clear injection molded PMMA acrylic
- Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
- Universal voltage, 120 through 277V with a ±10% tolerance. Driver is Underwriters Laboratories recognized
- High voltage configurations, 347/480. Driver has a 0-10V dimming interface for multi-level illumination options. Driver is Underwriters Laboratories recognized
- "Thermal Shield”, secondary side, thermistor provides protection for the sustainable life of LED module and electronic components
- Drivers shall have greater than a 0.9 power factor, less than 20% harmonic distortion, and be suitable for operation in -40°C to 40°C ambient environments
- Luminaire shall be capable of operating at 100% brightness in a 40°C environment. Both driver and optical array have integral thermal protection that will dim the luminaire upon detection of temperatures in excess of 85°C
- Dimming range from 10% to 100% through the use of standard 0-10V interface on the programmable driver
- Modular wiring harness in the service area provides user access to the dimming circuitry
- Optional factory programmed dimming profile
- Surge protection: 10,000k in parallel, 20,000k in series
- SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts
- Wiring: No. 18AWM rated 105°C, wet rating.
- UL 1598 Standard for Luminaires.
- IP66 certified.
- RoHS compliant.
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
