description
PRODUCT SPECIFICATIONS

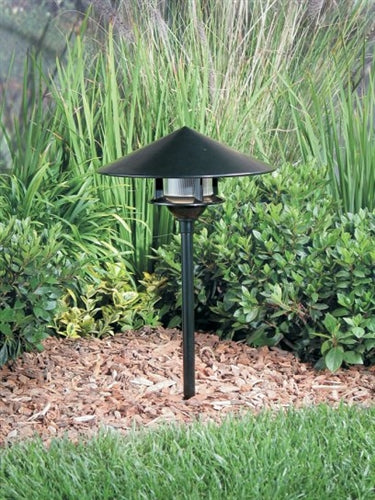

Hood: Spun aluminum with low copper alloy aluminum
die-cast reflector and hinge assembly. The hood is painted
to order and the reflector is always painted white. The
hood reflector assembly is removable with a no-tool
stainless steel snap latch. Hood is available in three styles:
Pagoda, Cone, and Mushroom.
Husk: Die-cast low copper alloy aluminum with stainless
steel hinge / latch assembly.
Globe: Fluted glass.
Stem: 8" schedule 40 aluminum pipe with 1/2" NPT at
bottom plus solid brass locknut for secure mounting.
Wiring: 3' No. 18-2 12 Volt cable with fork connectors.
Optical System: A total of 3 LED emitters configured
in a rectangular array comprised together as a module.
Available in 3000K, 4200K and 5100K.
Driver: Constant current electronic driver. Available in
12V input. -40ºF. starting temperature. All drivers are
Underwriters Laboratories recognized.
Finish: Each luminaire receives a fade and abrasion
resistant, electrostatically applied, thermally cured,
triglycidal isocyanurate (TGIC) polyester powdercoat finish.
Standard colors include (BL) Black, (DB) Dark Bronze,
(WH) White, (PS) Platinum Silver, (SG) Stealth Gray, (LG)
Light Gray, and (CC) Custom Color (Include RAL#).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
