PRODUCT SPECIFICATIONS
Lens Ring: Die-cast low copper aluminum. Five captive 1/4"
blackened stainless steel hex-socket cap screws.
Lens: Clear tempered soda lime, 3/16" thick, flush with lens
ring, slightly crowned.
Lens Gasket: One-piece molded silicone, U-channel wraps
completely around lens flange.
Housing: Die-cast low copper alloy aluminum.

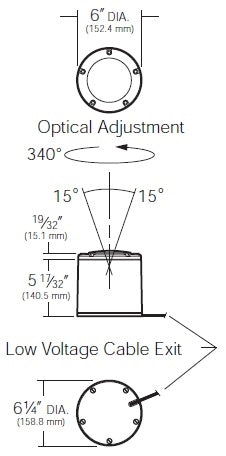

Bracket: Mounted on yoke providing ±15° vertical adjustment
and 340° rotation, locking screws, black anodized gimble ring.
Cable: 6' #18-2 12 Volt cable with fork connector, sealed entry
into body with anti-siphon plug.
Optical System: A total of 3 LED emitters configured in a
rectangular array comprised together as a module. Available
in 3500K and 5100K.
Driver: Constant current electronic driver. Available in 12V
input. -40ºF. starting temperature. All drivers are Underwriters
Laboratories recognized.
Finish: Super TGIC thermoset polyester powder coat paint,
2.5 mil nominal thickness, applied over a titanated zirconium
conversion coating; 2500 hour salt spray test endurance rating.
Standard colors are Black (BL), Dark Bronze (DB),
and Verde Green (GR).
Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
