Kim Lighting KLV432 500' #8-2 12 Volt Cable

PRODUCT SPECIFICATIONS

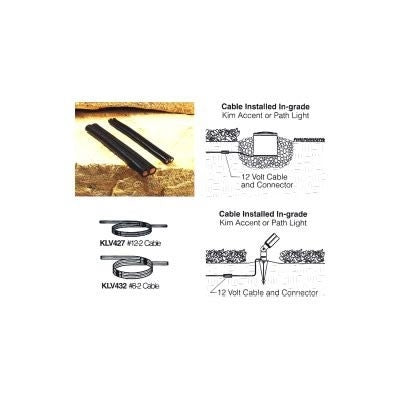

The greatest benefit of installing a low voltage lighting system is the ability to conceal the flexible electrical cable directly under as little as 6" of soil cover, without the need for conduits or raceways.
Voltage drop for KLV600 series transformers is a function of cable size, circuit length and connected fixture wattage. In order to attain good lumen output, it is recommended that each fixture be provided a minimum of 10 volts. Use the chart below to estimate the cable size required and maximum circuit distance allowable to maintain 10 volts to the farthest connected fixture on a cable run.
Copper stranded landscape cable, black, UL recognized.

600 watt transformer consists of (2) 250 watt branches, requiring a minimum of (2) branch circuit cable runs.
900 watt transformer consists of (4) 250 watt branches, requiring a minimum of (4) branch circuit cable runs.

ORDERING INFORMATION
