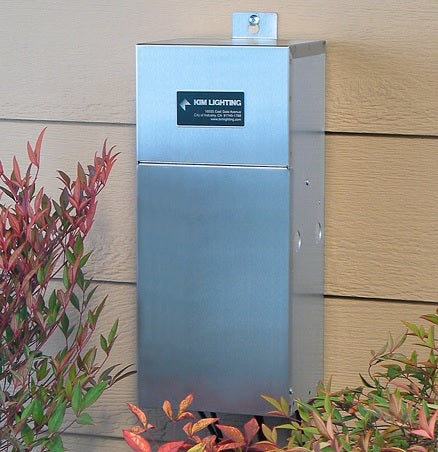

Kim Lighting KLV605 300W One Circuit 120V to 12-15V Multi-Tap Low Voltage Magnetic Above-Grade Transformer, Dimmable, Stainless Steel Enclosure

PRODUCT SPECIFICATIONS

Enclosure: Formed 16 ga. stainless steel enclosure with integral hinge. Cover is secured with two stainless steel screws. A through hole is provided in the bottom edge for a padlock (by others). 1/2" knockouts on each side of the enclosure are provided for hardwiring
or accessory photocell mounting.

Transformer: Core and coil type fully epoxy encapsulated. Output is multi-tap 12V / 13V / 14V / 15V. The 200 and 300-watt units have single circuit output, the 600-watt unit has two circuits for output.Variable taps provide flexibility in system design with the 12 volt tap for fixtures near the transformer location and higher voltages for more remote fixtures.

Terminal Block: 80-amp euro-style terminal block.

Circuit Breaker: 25 amp magnetic circuit breaker (1) per circuit.

Cord: Six foot, heavy duty outdoor power cord is provided and installed.

Certification: UL Listed to U.S. and Canadian safety standards for wet locations. Fixture manufacturer shall employ a quality program that is certified to meet the ISO 9001:2000 standard.

Copper stranded landscape cable, black, UL recognized

ORDERING INFORMATION



Note: Output wattage is not to exceed 25 amps on each circuit. Weather conditions must be considered when determining load on transformers, hot weather areas should reduce the output wattage to prevent heat build-up on circuit breakers. The voltage at each fixture must not exceed 12 volt. Load and distance must be considered when determining which voltage tap to use. A good maintenance program is required to replace lamps as they burn out to prevent over-voltage of remaining lamps.
