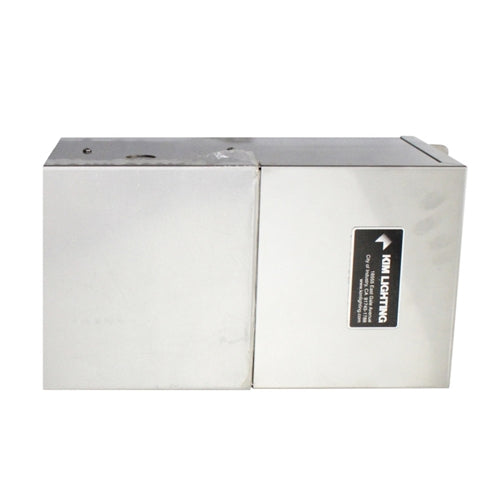

Kim Lighting KLV665 600W One Circuit 277V to 12-15V Multi-Tap Low Voltage Magnetic In-Grade Transformer, Dimmable, Stainless Steel Enclosure

PRODUCT SPECIFICATIONS

Enclosure: Epoxy encapsulated in a stainless-steel burial enclosure.

KLV665 600W toroidal transformer has a 277V input and a dual 12V output. Variable taps provide flexibility in system design with the 12 volt tap for fixtures near the transformer location and higher voltages for more remote fixtures.

Certification: UL Listed to U.S. and Canadian safety standards for wet locations.

ORDERING INFORMATION



Note: Output wattage is not to exceed 25 amps on each circuit. Weather conditions must be considered when determining load on transformers, hot weather areas should reduce the output wattage to prevent heat build-up on circuit breakers. The voltage at each fixture must not exceed 12 volt. Load and distance must be considered when determining which voltage tap to use. A good maintenance programis required to replace lamps as they burn out to prevent over-voltage of remaining lamps.
