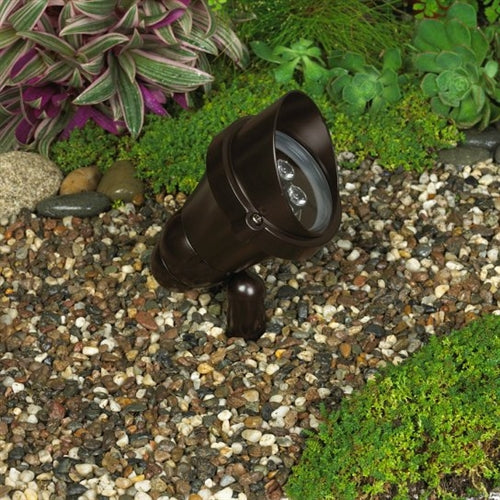

Kim Lighting KLVL711DB 12V Low Voltage 10W LED Die-Cast Aluminum Landscape Light, Scarab Style, Dark Bronze Finish

PRODUCT SPECIFICATIONS

Housing: Die-cast aluminum body and socket enclosure.

Swivel: Die-cast aluminum with locking teeth and 1/2" solid brass NPT mount. Provides horizontal rotation independent of the threaded mount. Swivel locked by 1/4-20 stainless set screw. Clear anodized prior to powder coating for added corrosion resistance.

Lens Frame: Integral die-cast aluminum lens ring and glare shield.

Lens: Tempered clear soda lime glass with silicone gasket.
Flush with lens frame to promote water runoff when positioned upward.
Gasketing: Silicone gaskets used throughout.

Driver / Optical System: 3 LED emitters configured in a triangle array comprised together as a module. Each LED is encapsulated under a precision optical prism to produce a narrow flood pattern. The -40c driver is within the module and operates on 12V AC or DC current, 9.8 watt, 0.816 amp.

Wiring: 6' No. 18-2 12 Volt cable with spade connectors for low voltage cable system connection.

Finish: Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat finish.
Standard colors include (BL) Black, (DB) Dark Bronze, Verde Green (GR).

Certification: UL Listed to U.S. and Canadian safety standards for wet locations.
