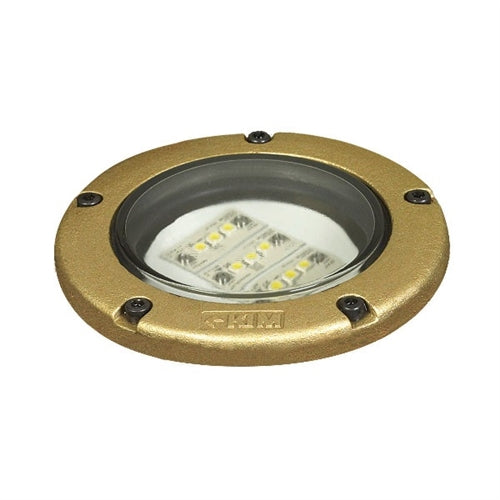

Kim Lighting LTV767NF/6L4KUV/SS60 9.6W In-Grade Minivault Die-Cast Brass LED, Narrow Flood Distribution, 120-277V, 4000K, Brushed Stainless Steel Lens Ring

PRODUCT FAMILY SPECIFICATIONS
Lens Ring: Die-cast brass with natural finish. (Optional standard stainless steel lens ring is also available.) Five captive 1/4" blackened stainless steel hex-socket cap screws.
Lens: Clear tempered soda lime, 3/16" thick, flush with lens ring, slightly crowned.
Lens Gasket: One-piece molded silicone, U-channel wraps completely around lens flange.
Housing: Heavy wall die-cast brass.
Integral Junction Box: Die-cast brass with stainless steel flat head slotted screws and molded silicone gasket. Diecast internal junction box cover with silicone gasket and anti-siphon plug, two 1/2" NPT taps in bottom, 12 cu in. volume.

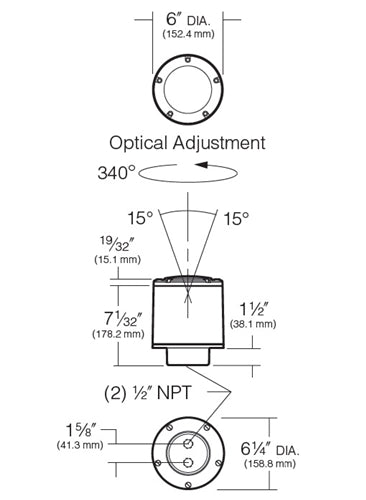

Optical System: 6 LED emitters configured in a circular array, mounted on yoke providing ±15° vertical adjustment and 340° rotation, with locking screws. Available in 3000K, 4000K, and 5000K.
LED Driver: Electronic driver. 0°F. starting temperature. All drivers are Underwriters Laboratories recognized.
Wiring: Anti-siphon barrier on wiring to and from splice compartment. All components wire linked for ground, quickdisconnect for removal of optical system.
Distribution: Specify "SP" for spot distributions; specify "NF" for narrow flood distributions.
