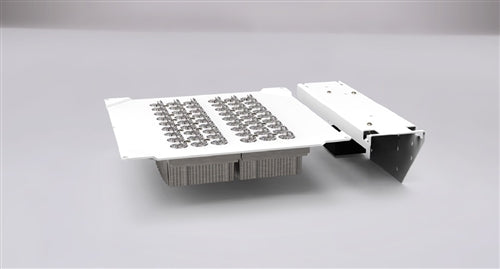

Home > Hubbell Lighting > Kim Lighting SARK2-54L-500-5K7-2-UNV-BLS-BC-SF The Archetype 2.0 Small Kit Area Light, 54 LEDs, 9000 Lumens, 5000K, 70 CRI, Type II Distribution, 120-277V, Black Gloss Smooth, Backlight Control, 120, 277, 347 Line Volts Fuse
Kim Lighting SARK2-54L-500-5K7-2-UNV-BLS-BC-SF The Archetype 2.0 Small Kit Area Light, 54 LEDs, 9000 Lumens, 5000K, 70 CRI, Type II Distribution, 120-277V, Black Gloss Smooth, Backlight Control, 120, 277, 347 Line Volts Fuse
Kim Lighting SARK2-54L-500-5K7-2-UNV-BLS-BC-SF The Archetype 2.0 Small Kit Area Light, 54 LEDs, 9000 Lumens, 5000K, 70 CRI, Type II Distribution, 120-277V, Black Gloss Smooth, Backlight Control, 120, 277, 347 Line Volts Fuse
Regular price
Price:
$753.31
Regular price
Price:
Sale price
$753.31
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- One piece die-cast housing, low copper (<0.6% Cu) Aluminum Alloy with integral cooling ribs over the optical chamber and electrical compartment
- All hardware is stainless steel or electro-zinc plated steel
- Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat
- Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
- Optical cartridge system consisting of a die cast heat sink, LED Total Internal Reflection (TIR) optics, gasket and bezel plate
CONSTRUCTION
INSTALLATION- One piece die-cast housing, low copper (<0.6% Cu) Aluminum Alloy with integral cooling ribs over the optical chamber and electrical compartment
- All hardware is stainless steel or electro-zinc plated steel
- Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat
- Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury
- Optical cartridge system consisting of a die cast heat sink, LED Total Internal Reflection (TIR) optics, gasket and bezel plate
ELECTRICAL
CERTIFICATIONS AND LISTINGS- Dimming range from 10% to 100% through the use of standard 0-10V interface on the programmable driver
- Modular wiring harness in the service area provides user access to the dimming circuitry
- Optional factory programmed dimming profile
- Surge protection: 10kV surge suppression
- SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts
- Listed to UL1598 and CSA C22.2#250.0-24 for wet location and 40˚C ambient temperatures
- RoHS compliant
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
