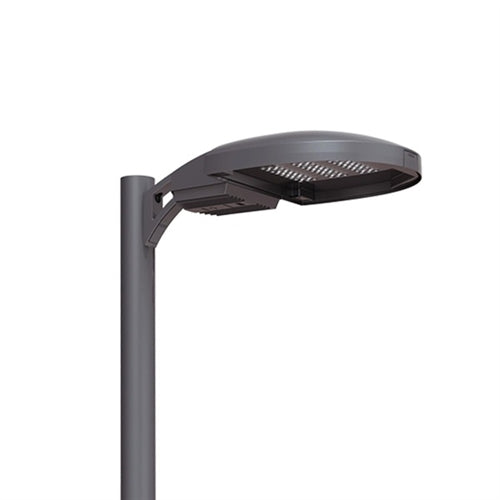

Kim Lighting WP9LK2/81L-550/3K7/2/UNV/BLT Warp 9 LED Area Light, 81 LEDs, 15000 Lumens, 3000K, 70 CRI, Type II Distribution, 120-277V, Black Matte Textured

Price: $930.02

MODEL: Kim-WP9LK2-56

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS

CONSTRUCTION

One piece die-cast housing, low copper (<0.6% Cu) Aluminum Alloy with integral cooling ribs over the optical chamber and electrical compartment
All hardware is stainless steel or electro-zinc plated steel
Finish: fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) polyester powdercoat

INSTALLATION

Fixtures must be grounded in accordance with national, state and/or local electrical codes. Failure to do so may result in serious personal injury

OPTICS

Optical cartridge system consisting of a die cast heat sink, LED Total Internal Reflection (TIR) optics, gasket and bezel plate
Molded silicone gasket ensures a weatherproof seal around each individual LED
Features revolutionary individual LED optical control based on high performance TIR optical designs
Optional BackLight Control for complete control of unwanted backlight
IP65 Optical assembly
Type 1, 2, 3, 4, 4W, 5Q, L, and R standard distributions
Available in Monochromatic Amber, 2700K, 3000K, 3500K, 4000K and 5000K
Die-cast, low copper aluminum heat sink modules provide thermal transfer at PCB level
Anodized aluminum heat sink modules

ELECTRICAL

Dimming range from 10% to 100% through the use of standard 0-10V interface on the programmable driver
Modular wiring harness in the service area provides user access to the dimming circuitry
Optional factory programmed dimming profile
Surge protection: 10kV surge suppression
SF for 120, 277, 347 Line volts DF for 208, 240, 480 Line volts

CERTIFICATIONS AND LISTINGS

Listed to UL1598 and CSA C22.2#250.0-24 for wet location and 40˚C ambient temperatures
RoHS compliant

WARRANTY
