Kim Lighting LTV764 50W MR16 Halogen 120 Volt Die-Cast Brass In-Grade Minivault Landscape Light, Natural Brass Finish

PRODUCT SPECIFICATIONS

Lens Ring: Die-cast brass with natural finish. (Optional standard stainless steel lens ring is also available.) Five captive 1/4 " blackened stainless steel hex-socket cap screws.

Lens: Clear tempered soda lime, 3/16" thick, flush with lens ring, slightly crowned.

Lens Gasket: One-piece molded silicone, U-channel wraps completely around lens flange.

Housing: Heavy wall die-cast brass.

Integral Junction Box: Die-cast brass with stainless steel flat head slotted screws and molded silicone gasket. Die-cast internal junction box cover with silicone gasket and antisiphon plug, two K" NPT taps in bottom, 12 cu in. volume.

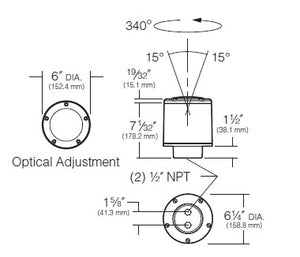

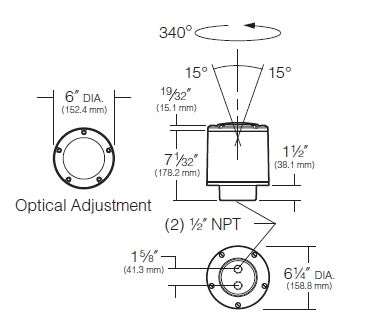

Socket: G4 to GY6.35 socket for bipin lamp. Socket is yoke mounted, providing ±15° vertical adjustment and 340° rotation, locking screws black anodized gimble ring.

Transformer: Integral 120 Volt to 12 Volt, 50 watt electronic stepdown transformer.

Wiring: Anti-siphon barrier on wiring to and from splice compartment. All components wire linked for ground, quickdisconnect for removal of optical system.
