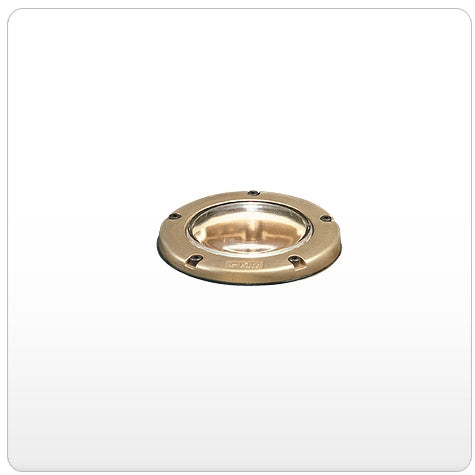

Kim Lighting LTV767NF/6L3K120 120 Volt Die-Cast Brass LED In-Grade Minivault Landscape Light, 7.2W, 6 LEDs, 3000K, Narrow Flood Beam, Natural Brass Finish

PRODUCT SPECIFICATIONS

Lens Ring: Die-cast brass with natural finish. (Optional standard stainless steel lens ring is also available.) Five captive
1/4" blackened stainless steel hex-socket cap screws.

Lens: Clear tempered soda lime, 3/16" thick, flush with lens ring, slightly crowned.

Lens Gasket: One-piece molded silicone, U-channel wraps completely around lens flange.

Housing: Heavy wall die-cast brass.

Integral Junction Box: Die-cast brass with stainless steel flat head slotted screws and molded silicone gasket. Diecast internal junction box cover with silicone gasket and anti-siphon plug, two K" NPT taps in bottom, 12 cu in. volume.

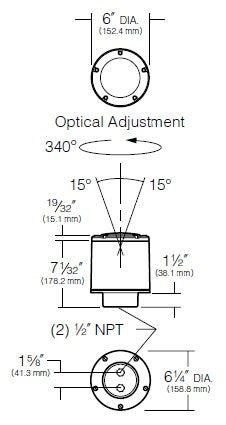

Optical System: 6 LED emitters configured in a circular array, mounted on yoke providing ±15° vertical adjustment and 340° rotation, with locking screws. Available in 3000K, 4200K, and 5100K.

LED Driver: Electronic driver. Available in 120V input. 0°F. starting temperature. All drivers are Underwriters Laboratories recognized.

Wiring: Anti-siphon barrier on wiring to and from splice compartment. All components wire linked for ground, quickdisconnect for removal of optical system.

Distribution: Specify “SP” for spot distributions; specify “NF” for narrow flood distributions.
