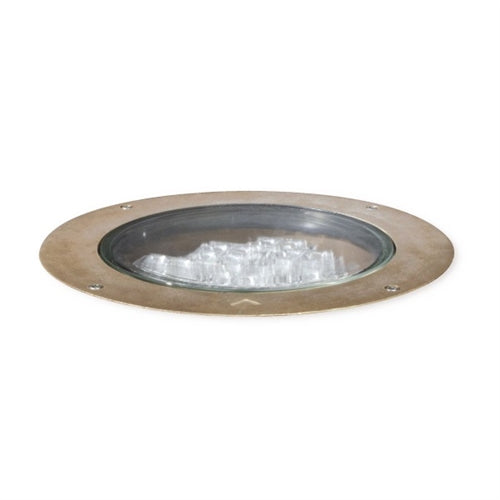

Kim Lighting LTV82FF-SP-12L-RGBW-UV-SR Landscape In-Grade Light Vault 10-7/8'" Diameter, Flat Frame, Spot Distribution, 12 LEDs, RGBW Color Temperature, 120-277V, Slip-Resistant Lens

Kim Lighting LTV82FF-SP-12L-RGBW-UV-SR Landscape In-Grade Light Vault 10-7/8'" Diameter, Flat Frame, Spot Distribution, 12 LEDs, RGBW Color Temperature, 120-277V, Slip-Resistant Lens

Price: $2,076.77
Price: $2,076.77

MODEL: Kim-LTV82FF-SP-12L-RGBW-UV-SR
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Housing:
  • Pour Box rough-in housing for installation below grade.
  • High temperature UV resistant thermal plastic, 3/16" minimum wall, black.
  • Includes a splice box with molded plastic splice cover and silicone gasket.
  • Three 1" NPT in bottom for through wiring.
  • 55 cu. in. splice area.
  • Rough-in housing supplied with a protective aluminum debris shield and includes an orientation label for proper installation alignment. This allows for clean and easy installation in concrete pad or soil. Pour Box can be shipped separately as a quick-ship if requested.
Component Module:
  • One-piece impregnated cast bronze component module is fully sealed and secured to the face trim from the underside.
  • A high temperature, anti-siphon, IP68 sealed cable extends from the component module to the splice box inside the housing.
  • The fully assembled component module is secured to the housing with (4) ¼-20 tamper-resistant and high grade stainless steel fasteners.
Face Trim:
  • One-piece cast bronze lens ring fastens to the component module from the underside and provides a flat surface.
  • Optical Modules: Spot (SP) and Narrow Flood (NF) optical modules are adjustable up to ±12° utilizing a Bluetooth® enabled motor assembly.
Bluetooth®:
  • Integral Bluetooth® module, built into driver, permits the adjustment/aiming of optic board and to dim fixture(s) to desired setting when paired with Remote App via cellular/tablet device.
  • Bluetooth® Low Energy (BLE) or Bluetooth® Smart compatible for both iOS (iOS8 and forward) and Andriod (Gingerbread and forward) handheld software applications. Compatible with phones and tablets.
  • Free Bluetooth® Apps are available for Apple iOS and Google Android mobile devices and are downloadable via the internet at Apple App Store or Google Play.
DMX:
  • 6 wires: Red (DMX+), Violet (DMX-), Grey (DMX Ground), Black (Voltage), White (common), and Green (Ground)
  • Single DMX universe with six slots/addresses of virtual control which are pre-programmed at the factory:
    • DMX slot/address 1 = red
    • DMX slot/address 2 = blue
    • DMX slot/address 3 = green
    • DMX slot/address 4 = white
    • DMX slot/address 5 = X tilt, a 127 means do nothing, a value between 1-63 means left, a value between 192-254 means right DMX slot/address 6 = Y tilt, a 127 means do nothing, a value between 1-63 means up, a value between 192-254 means down
  • Fully DMX RDM compatible .
Mobile App:
  • X-Y tilt controls for aiming.
  • Color selection and adjustment.
  • Camera function for color matching.
  • Intensity slider for dimming/ramping up.
  • Save and rename up to 10 presets.
  • Group and rename fixtures.
  • Fixture is password protected, refer to instructions to set unique password
Lens:
  • Clear 5/16” thick tempered glass lens and silicone gasket is retained securely within the component module.
Options:
  • Slip Resistant Lens (SR) and Rebar Cage Anchor (RCA82).
Electrical Equipment:
  • All electronic components are UL and CSA recognized and are mounted directly to the component module for maximum heat dissipation and modularity. Driver is IP67 with -30°C minimum temperature rating.
Drive-Over Durability:
  • When installed in concrete, fixture will withstand drive-over by vehicles weighing up to 4,500 lb.
Certification:
  • UL 1598 Standard for Luminaires.
  • UL 8750 Standard for Safety for Light Emitting Diode (LED) Equipment for use in Lighting Products.
WARRANTY:
  • Opening of Component Module on site will void warranty.
