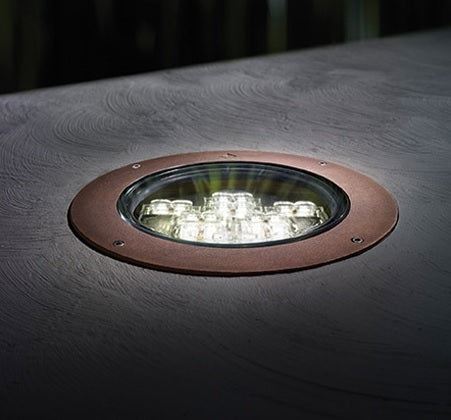

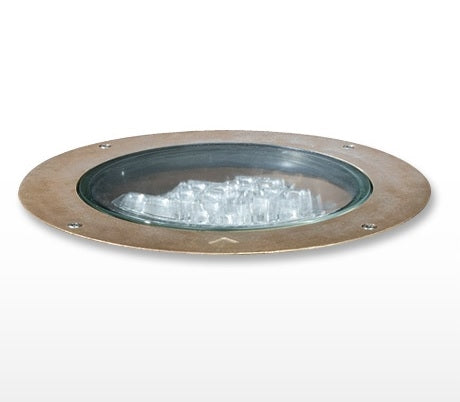

Kim Lighting LTV83FFSP12L4KUVPL Landscape In-Grade Light vault 8 Flat Frame, 7-15/16" Diamater, Spot Distribution, 12 LEDs, 4000K, 120-277V, Prismatic Lens

PRODUCT FEATURES

• Sealed IP68 LED light engine
• Bluetooth connectivity for remote control aiming and dimming
• Free Mobile App for Android and iOS
• Easy to install and pair devices
• Advanced thermal management provides long life in excess of 100,000+ hours
• Runs cool to the touch - less than 40°C

PRODUCT SPECIFICATIONS

Housing

• Pour Box rough-in housing for installation below grade.
• High temperature UV resistant thermal plastic, 3/16” minimum wall, black.
• Includes a splice box with molded plastic splice cover and silicone gasket.
• Three 1” NPT in bottom for through wiring on LTV81 and LTV82.

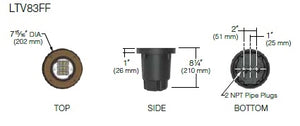

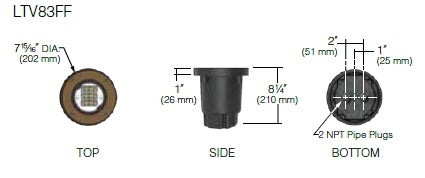

• Two 1” NPT in bottom for through wiring on LTV83. 107 cu. in. splice area for LTV81.
• 52 cu. in. splice area for LTV82.
• 24 cu. in. splice area for LTV83.

Component Module

• One-piece impregnated cast bronze, fully sealed component module secured to the face trims from the underside.

• A high temperature, anti-siphon, IP67 sealed cable extends from the component module to the splice box inside the housing.
• The fully assembled component module is secured to the housing with (4) ¼-20 tamper-resistant high grade stainless steel fasteners.

Face Trim One-piece cast bronze lens ring fastened to the component module from the underside shall provide a flat surface.

Optical Modules Spot (SP), Narrow Flood (NF), and Wall Wash (WW) optical modules are adjustable up to 15° utilizing a Bluetooth enabled motor assembly.

Bluetooth

• Integral Bluetooth module used to adjust optics and dim fixture to desired setting when paired with KIM LTV8 Remote App via ellular/tablet device.

• Fully qualified Bluetooth 1.1, 1.2, 2.0, 2.1. Bluetooth v2.0+EDR compatible with Android devices running Android Gingerbread API
  level 9 forward. Bluetooth 4.0 LE compatible with iOS devices - iPhone 4S and later, 5th generation iPod touch, the iPad Mini and the
  3rd generation and later of the full size iPad with iOS 5 or later.
• Bluetooth Apps are available for Apple iOS and Google Android mobile devices and are downloadable via the internet at Apple App Store or Google Play.

Lens Clear 5/16” thick tempered glass lens and silicone gasket is retained securely within the component module.

Options Slip Resistant Lens (SR), Prismatic Lens (PL), Rebar Cage Anchor (RCA8x).

Electrical Equipment

• All electronic components are UL and CSA recognized and mounted directly to the component module for maximum heat dissipation and modularity.
• Driver is IP67 with -30°C minimum temperature rating.


Drive-Over Durability When installed in concrete, fixture will withstand drive-over by vehicles weighing up to 4,500 lbs.

Certification

• (UL1598, UL8750). 25°C ambient operation.
• SASO Certified for LTV82/83.
